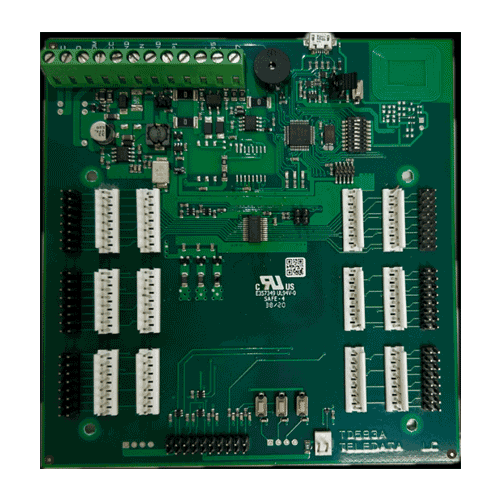

    ONEMIMIC – Interface Module for TeledataOne Synoptic Panel and Fire System

    Main function:

    ONEMIMIC serves as an interface between TeledataOne and a weather board, transmitting information about the status of the fire system (accidents, activated zones, test mode) through an LED indication.

    Key features:

    1. Connection to the fire station:

    • RS-485 communicateswith the TeledataOne control panel.
    • Support for up to 16 ONEMIMIC modules in one system (addressing via DIP switch).

    2. LED indication:

    • 48 zone LED outputs (display the status of specific zones).
    • Additional outputs for general events:
      • System malfunction
      • Fire alarm
      • Test mode
    • Test button – checks the correct operation of all LEDs.

    3. Zone Grouping (Block Indication):

    The system supports 4 blocks of LEDs that cover a total of 192 zones:

    • Unit 1: Zones 1–48
    • Unit 2: Zones 49–96
    • Unit 3: Sites 97–144
    • Unit 4: Zones 145–192
    Захранване / Power supply:24 VDC
    Интерфейс / Interface:RS-485
    Брой зонови светодиоди / Number of area LEDs:
    		48
    Допълнителни индикатори / Auxiliary LED'sИзходи за неизправност, тестов бутон / general fault  and test
    Макс. брой карти в система / Maximum number of cards per system16 (адресиране с DIP switch) / 16 ONEMIMIC cards, setting the addresses via DIP SWITCH.
    Корпус / Housing:Метален (1 mm ламарина) / Pre-painted sheet 1 mm thickness metal case
    Размери / Dimensions:243 × 138 × 45 mm


    In accordance with standards  EN54-2 и EN54-4 Свали
