ACCESS CONTROL SYSTEMS

KaDe Access Control System

KDH-KS2012-IP


KDH-KS2012-IP
 STANDARD CONTROLLER

The standard KDH-KS2012-IP series controller is designed for use in an access control system controlled by KaDe Premium Plus II software.  The readers can use any identification technology provided they accept the Wiegand 26-40 bit interface.
Model KDH-KS2012-IP can control:​

1 door - bi-directional

2 doors - one way

KDH-KS2024-IP


KDH-KS2024-IP
  STANDARD CONTROLLER​

The standard KDH-KS2024-IP series controller is designed for use in an access control system controlled by KaDe Premium Plus II software. The readers can use any identification technology provided they accept the Wiegand 26-40 bit interface.
The model KDH-KS2024-IP can control:
2 doors - bi-directional

4 doors - one way

KDH-KS2012-RS


KDH-KS2012-RS
STANDARD CONTROLLER

The standard KDH-KS2012-RS series controller is designed to be used in an access control system controlled by KaDe Premium Plus II software. The readers can use any identification technology provided they accept a 26-40 bit Wiegand interface.
The model KDH-KS2012-RS can control:
1 door - bi-directional
 2 doors - one way

KDH-MOD2000INOUT


KDH-MOD2000INOUT EXPANSION MODULE

Expansion module with 4 inputs for additional readers and 8 outputs (4 relay+4 transistor)
This module is compatible with standard KS2000 series and KS3000 series controllers with firmware 10.1.

KDH-MOD2000-ELV

KDH-MOD2000-ELV

EXPANDER MODULE

The KDH-MOD2000-ELV expansion module increases the number of floors supported by the KDH-KS2000-IP-ELV controller.
This module is compatible with NMS AC monitoring program only version https://3.00.xx/ or KaDe Premium Plus II.

KDH-KS2000-IP-ELV

KDH-KS2000-IP-ELV

ELEVATOR CONTROLLER

The KDH-KS2000-IP-ELV elevator controller is designed to work in access control systems under the monitoring programs NMS AC (version https://3.00.xx/) or KaDe Premium Plus II. Readers can use any identification technology provided they have a Wiegand interface. The controller can operate up to 5 floors, up to 9 floors with one expansion module KDH-MOD2000-ELV and up to 69 floors with 4 expansion modules KDH-MOD2016-ELV. The controller has a built-in IP port for communication with the control program and an RS485 port for communication only with the expansion modules.

KDH-MOD2016-ELV

KDH-MOD2016-ELV

EXPANDER MODULE

The KDH-MOD2016-ELV expansion module increases the number of floors supported by the KDH-KS2000-IP-ELV controller. Using 4 modules of this type allows up to 69 floors to be controlled by one elevator controller.
This module is compatible with the access control program NMS AC only version https://3.00.xx/ and KaDe Premium Plus II.

KDH-KZ2000-IP-M

KDH-KZ2000-IP-M

INTEGRATED ACCESS CONTROLLER

The KDH-KZ2000-IP-U_M is designed for access control and wall mounting. A 32 bit processor ensures fast and reliable data processing. It is a single door controller. An additional reader can be connected to it to control a door bilaterally. It is possible to set one of four identification modes: card only ; PIN only; card or PIN; card + PIN
The KDH-KZ2000-IP-U_M can operate in stand-alone mode (keypad programming) or in network mode. In network mode it can work online or offline. Compatible with KaDe Premium Plus. Works with MIFARE 13.6 MHz cards

KDH-KZ2000-IP-U

KDH-KZ2000-IP-U

INTEGRATED ACCESS CONTROLLER

is designed for access control system and wall mounting. A 32 bit processor ensures fast and reliable data processing. It is a single door controller. An additional reader can be connected to it to control a door bilaterally.  It is possible to set one of four identification modes: card only ; PIN only; card or PIN; card + PIN
The KDH-KZ2000-IP-U_M can operate in stand-alone mode (keypad programming) or in network mode. In network mode it can work online or offline. Compatible with KaDe Premium Plus. Works with UNIQUE 125kHZ cards

KDH-KZ330U/H/M-BLACK

KDH-KZ330U/H/M-BLACK

 INTEGRATED ACCESS CONTROLLER

The KDH-KZ330U/H/M is a multifunctional stand-alone controller for a single door. The controller supports up to 600 users (598 normal users + 2 panic users). Access is by : card, PIN, card + PIN or multiple card/PIN access. There are additional features including "Interlocking". Supports Wiegand 26~37 bits interface. Compatible with UNIQUE, HID®, PROX, MIFARE® cards (125kHZ+13.6MhZ

KDH-KZ730U/H

KDH-KZ730U/H

INTEGRATED ACCESS CONTROLLER

The KDH-KZ730U/H is designed for physical access control of a single door. It has a relay lock output that supports even electromagnetic locks with high current consumption. The Wiegand interface allows the connection of an external reader to implement two-way access control.
A vandal-resistant metal housing made of zinc alloy and IP66 rating allows the controller to be used for outdoor installation as well. The KDH-KZ730U/H allows different ways to authorize users: card, PIN, card or PIN, card and PIN, multiple card/PIN access. The device can also operate in reader mode with Wiegand interface. It supports Unique and HID Prox cards operating at 125 kHz frequency.

KDH-KZ630U/H

KDH-KZ630U/H

INTEGRATED ACCESS CONTROLLER

The KDH-KZ630U/H is designed for physical access control of a single door. It has a relay lock output that supports even electromagnetic locks with high current consumption. The Wiegand interface allows the connection of an external reader to implement two-way access control.
A vandal-resistant metal housing made of zinc alloy and IP66 rating allows the controller to be used for outdoor installation as well. The KDH-KZ630U/H allows different ways to authorize users: card, PIN, card or PIN, card and PIN, multiple card/PIN access. The device can also operate in reader mode with Wiegand interface. Supports Unique and HID Prox cards operating at 125 kHz frequency.

​Supports Unique and HID Prox cards operating at 125 kHz frequency. contactless cards even in the worst conditions.

KDH-KAB200U-BLACK

KDH-KAB200U-BLACK

INTEGRATED ACCESS CONTROLLER

A wireless access control for a door that consists of a wireless keypad, a mini controller and a wireless exit button. TEA+ Rolling Code's encryption algorithm and split design ensures a high level of security. The keypad can store up to 500 pins/users per card. Due to the extremely low power consumption, the keypad and exit button can operate for up to one year (based on 30 times per day) with only 3 AAA batteries and 1 Li-battery. Battery drop indication. Compatible with UNIQUE 125kHZ cards

ACCESS CONTROL SOFTWARE KADE PREMIUM II

The software is designed to work with standard KDH-KS2012/24-IP/RS controllers, KDH-KS2000-IP-ELV elevator controllers and KDH-KZ2000-IP-U or KDH-KZ2000-IP-M integrated controllers in online mode.
The KaDe Premium Plus II software is very easy to install and has a very user-friendly graphical interface. The "Dynamic Help" windows displayed on the operator's desktop are noteworthy as a user-friendly guide. After clicking any field on the operator's desktop, a description of that item and how to configure the system item is displayed.
The software is designed for small to medium sized companies.
The user interface allows:
- configuration of the physical elements of the system;
- definition of logical elements;
- "on-line" monitoring of the system through graphical object maps and alerts;
- displaying a picture of the user after using the map;
- generation of filtered event reports and saving in .xls format
The KaDe Premium Plus II software offers a host of features to meet the unusual requirements of the system administrator, such as:
- multi-card access;
- first-in access mode;
- access after operator confirmation;
- access control to elevators up to 69 floors;
- system element icon cards.
RS-485 lines on controllers can connect to PC software via RS-232 converter or TCP converter. The software can support up to 20 lines with 32 controllers on each bus. Controllers with an IP port can communicate over an Ethernet network. The system can support up to 1024 controllers, i.e. up to 4096 one-way controlled doors with 4 door controllers.

KDH-MODBOX

KDH-MODBOX

METAL BOX

Metal box for controllers and expansion modules.


kade diagram

NMS AC Access control system

The NOVUS MANAGEMENT SYSTEM AC software, in conjunction with the NOVUS 6000 series LPR IP cameras, creates an advanced license plate recognition system that enables automation of entry/exit control and vehicle evidence. The controlled facility area may be divided into parking areas with designated entrances/exits. In addition, zones can be visualized on panels by presenting the exact list of vehicles currently in the zone. For each zone, there may be a certain maximum number of vehicles that can remain. After crossing the border of the zone, vehicles will not be allowed.

NOVUS MANAGEMENT SYSTEM AC software in conjunction with NOVUS 6000 series IP LPR cameras creates an advanced license plate recognition system that enables automated traffic control and vehicle data. The system allows for the creation of a central database of registration numbers. When detected, it should generate an alarm notification, e.g. alert about a car showing up at the gas station with license plates matching those associated with the fuel theft.

The application allows fast and intuitive control of PTZ as well as stationary cameras equipped with a motorized zoom lens. Control is available from the image level as well as dedicated PTZ tools. When using fisheye cameras, it is possible to create virtual views and apply virtual PTZ in places where the installation of multiple cameras is limited.

Colorful and clear image even after dark, thanks to the new SONY STARVIS sensor. Thanks to the use of a more efficient sensor, it allows you to display a color image at very low light levels, where cameras with a standard sensor would switch to black and white mode, losing detail and color information.

The innovative INGENIUS PLUS image analysis technology used in NOVUS brand cameras uses an IA algorithm that distinguishes objects in the camera's field of view, allowing the recognition of a person, a vehicle, as well as a bicycle or motorcycle. The algorithm detects a specific object regardless of weather conditions. Object classification functionality allows e.g. verification of occupied parking spaces based on a video image, as well as reducing the number of false alarms in the peripheral security system. The feature to count objects with recognized shapes that have crossed a virtual line can be used in objects such as shopping malls and other public facilities with high traffic intensity. Results from individual cameras are displayed regularly.

The NOVUS MANAGEMENT SYSTEM AC software enables viewing images from cameras on multiple monitors with a resolution of up to 4k. The separation of the cameras displayed on the monitors can be freely configured, which is accurate and convenient for the operator. The decoding of images from the cameras is carried out by the processing power of a graphics card of each manufacturer (DXVA technology).

The video playback feature in the NOVUS MANAGEMENT SYSTEM AC software allows viewing of archived event recordings from NOVUS recorders as well as video verification of previously triggered alarms from the access control system.

The cameras that work in an infrared light stream, the so-called thermal imaging cameras are key elements of the object's visual protection system. Thanks to operator specifications, they are weatherproof and feature high human detection efficiency even in complete darkness or when the area is not illuminated.

Global zones allow controlling the movement of persons and vehicles in access control zones with this functionality. Allows quick location of individuals or groups in specific areas. The information is visualized on the panels.

It allows to define an organizational structure of a company and thus to distribute employees, which significantly increases the visibility as well as the functionality of the program. It is possible e.g. authorize operators or generate time reports only for a selected part of the organization structure.

Functional import/export of user database in CSV format. The system administrator can conveniently make some necessary changes to the user database in a CSV file and then import it into the software.

Elevator controllers KS3000-IP-ELV together with relay modules allow interaction with elevator systems. Depending on the chosen solution, the reader installed in front of the elevator entrance can control the elevator call. The reader installed in the elevator controls access to individual floors. It is possible to assign authorization to cards to control access to one or more floors. In addition, the system operator can periodically unblock all floors or once a selected floor at the request of a user who does not have a card. All floors can also be unlocked using the exit button. One controller can support one elevator and up to 69 floors. Above 5 floors additional relay modules are required. It is possible to assign an installed camera to the reader inside the elevator.

The function enables defining the minimal number of the stuff required to stay in alert in a military unit..

NOVUS MANAGEMENT SYSTEM AC supports biometric identification, which is one of the safest and most modern methods of entry/exit control in the access control system. The system provides full integration with controllers based on fingerprint or facial geometry recognition. The fingerprint model or face geometry must be set in a user definition framework of the NOVUS MANAGEMENT SYSTEM AC software, which is common to all identifiers - card, access code, QR code. The KZ3000FP integrated biometric controllers enable such a form of identification.

he function of operator panels in the application allows operation of the NOVUS MANAGEMENT SYSTEM AC in a specific site. The operator can transfer between different layers of a graphical interface, on which interactive icons of elements of the access control system (controllers, doors, control inputs, etc.) are placed. It is a convenient solution that allows intuitive control of the facility by selecting the appropriate panel and performing operations on certain elements of the system, all in an easy way. Additionally, it is possible to place an IA stack of current events, which allows a filtered view of events occurring in a specific facility, e.g. access events or triggered alarms, etc.

Evacuation control with the use of report option in connection with global zones control.

For additional security of important passages, the door can only be opened after verification and confirmation by the operator monitoring the operation of the system. After placing the validated card on the reader, the system generates a notification at the operator's workstation, which authenticates the user's identity based on the image added to the system and grants access by pressing the corresponding button on the screen. If the operator cannot see the door directly, a video stream from a built-in NOVUS camera that monitors the controlled passage can be used to verify the user's identity, so-called video verification.

The NOVUS MANAGEMENT SYSTEM AC software allows the creation of systems based on multiple distributed servers. Their management can be performed centrally by one or more supervisory centers. It is an ideal solution for commercial and banking chains or facilities with a domestic or even global reach.

Online check-in/check-out enables a quick review of the attendance status of employees in the company, calculation of working hours in accordance with the schedule assigned to each employee and generation of various types of periodic reports. Standard access control readers installed on gates or T&A terminals designed for this purpose can be used to log entries/exits. In addition, integration with T&A terminals allows registration and calculation of exits/entrances during the working day - business, private and holidays. The biometric terminal model allows the use of a fingerprint for registration. The software also offers the ability to generate T&A reports - by the operator or automatically, on a schedule. The report saved as a CSV file can be used as an exchange file for integration with HR and payroll programs. Each employee can receive an e-mail notification of work time evaluation.

The system allows advanced alarm system status monitoring by receiving events for burglary, sabotage, anti-masking, intrusion violation, duress alarm, fire alarm, failure with failure information, battery or charging failure, power on/off. exits and many more. Combined with the functionality of system visualization on panels and definition of activation scenarios, this allows the response time to existing alarm situations to be reduced to a minimum.

Thanks to the control (alarm) output control functionality, it is possible to remotely control devices (e.g. lighting, air conditioning, etc.) from the level of the interface program.

Monitoring of parameters important to production processes, such as temperature, humidity and current.

nms ac city
KDH-KS3012-IP

KDH-KS3012-IP

CONTROLLER

 The KDH-KS3024-IP is designed to work with the new NMS AC access control system. Communication with the system server is via TCP/IP protocol through the controller's Ethernet port.
It is possible to connect up to two readers to the controller using the Wiegand ports. Readers with output from 26 to 40 bits are supported. This ensures that the KDH-KS3012-IP controller can control one double-sided or two single-sided access controlled doors.
Support for readers with four-bit keypad output format allows the use of different ways of user identification - card only, PIN only, card or PIN and two-step card and PIN identification.
The KDH-KS3024-IP has NO/NC programmable inputs and relay outputs to control the operation of devices with significant current ratings (e.g., solenoid locks, annunciators). The number of controller inputs and outputs can be increased by using the optional KDH-MOD2000INOUT expansion module for controllers with firmware 10.1 or KDH-MOD3000INOUT for controllers with firmware higher than 10.1.
The memory of 20,000 cards, 50,000 events and 20,000 alarms allows the system to operate uninterrupted even if communication with the server is lost, as well as backing up events and alarms to the server after reconnection.

KDH-KS3024-IP

KDH-KS3024-IP

CONTROLLER

The KDH-KS3024-IP is designed to work with the new NMS AC access control system. Communication with the system server is carried out using the TCP/IP protocol through the controller's Ethernet port.
It is possible to connect up to two readers to the controller using the Wiegand ports. Readers with output from 26 to 40 bits are supported. This ensures that the KDH-KS3024-IP controller can control two double-sided or four single-sided access controlled doors.
Support for readers with a four-bit keyboard output format allows the use of different ways to identify the user - card only, PIN only, card or PIN and two-step identification card and PIN.
The KDH-KS3024-IP has NO/NC programmable inputs and relay outputs to control the operation of devices with a significant current value (eg electromagnetic locks, annunciators). The number of controller inputs and outputs can be increased by using the optional expansion module KDH-MOD2000INOUT for controllers with firmware 10.1 or KDH-MOD3000INOUT for controllers with firmware higher than 10.1.
A memory of 20,000 maps, 50,000 events and 20,000 alarms allows the system to run undisturbed even if communication with the server is lost, as well as backup of server events and alarms after reconnection.

KDH-MOD3016-ELV

KDH-MOD3016 ELV

EXPANDER MODULE

The KDH-MOD3016-ELV expansion module increases the number of floors supported by the KDH-KS3000-IP-ELV controller. The use of 4 modules of this type allows up to 69 floors to be controlled from one elevator controller.

KDH-KS3000-IP ELV

KDH-KS3000-IP ELV

ELEVATOR CONTROLLER

The KDH-KS3000-IP-ELV elevator controller is designed for operation in access control systems under NMS AC (version 4.00.02). All readers supporting Wiegand interface are compatible. The controller can control up to 5 floors, up to 9 floors with one KDH-MOD3004-ELV expansion module and up to 69 floors with 4 KDH-MOD3016-ELV expansion modules. The controller has a built-in IP port for communication with the control program and an RS485 port for communication with the expansion modules only.

KDH-MOD3000INOUT

KDH-MOD3000INOUT

EXPANDER MODULE

Expansion module with 4 inputs for additional readers and 8 outputs (4 relay+4 transistor)
This module is compatible with KS3000 series controllers with firmware higher than 10.1.

KDH-MOD2000INOUT

KDH-MOD2000INOUT

EXPANDER MODULE

Expansion module with 4 inputs for additional readers and 8 outputs (4 relay + 4 transistor)

This module is compatible with standard KS2000 series and KS3000 series controllers with firmware 10.1.

KDH-MOD3004-ELV

KDH-MOD3004-ELV

EXPANSION MODULE FOR ELEVATORS

The KDH-MOD3004-ELV expansion module increases the number of floors supported by the KDH-KS3000-IP-ELV controller.
This module is compatible with NMS AC version https://4.02.xx/ or later.

KDH-KZ3000FP-IP-M

KDH-KZ3000FP-IP-M

BIOMETRIC DOOR READER

The KDH-KZ3000FP-IP-M Wall Mount Fingerprint Controller. A 32-bit processor ensures fast and reliable data processing. This is a single door controller. With an additional reader (also with keyboard), it is possible to set one of eleven identification modes: card only, PIN only, card or PIN, card + PIN, fingerprint only, fingerprint or card, fingerprint + card, fingerprint + card+ PIN, fingerprint or PIN , fingerprint+ PIN, fingerprint or card or PIN. Works with Mifare cards 13.6 Mhz

The KDH-KZ3000FP-IP-M can operate in network mode, online or offline, and is compatible with NMS AC access control software.

KDH-KZ3000FP-IP-U

KDH-KZ3000FP-IP-U

INTEGRATED CONTROLLER

The KDH-KZ3000FP-IP-U controller is designed for wall-mounted access control system without additional housing. 32-bit processor provides fast and reliable data processing. It is a single door controller. With an optional reader (also with keypad) it is possible to set one of eleven identification modes: card only, PIN only, card or PIN, card+ PIN, fingerprint only, fingerprint or card, fingerprint+ card, fingerprint+ card+ PIN, fingerprint or PIN , fingerprint+ PIN, fingerprint or card or PIN. Works with Unique cards 125 Khz

The KDH-KZ3000FP-IP-U can operate in network mode, online or offline, and is compatible with NMS AC access control software.

KDH-KZ3000-IP-M

KDH-KZ3000-IP-M

INTEGRATED CONTROLLER

The KDH-KZ3000-IP-U controller is designed for an access control system and for wall mounting without an additional box. A 32 bit processor ensures fast and reliable data processing. It is a single door controller. With an optional reader (also with keypad) it can be used for two-way control. It is possible to set one of four identification modes: card only (default mode); PIN only; card or PIN; card + PIN
Works with Unique 125 Khz cards
The KDH-KZ3000-IP-U can operate in stand-alone (keypad programming) or network mode. In network mode it can operate online or offline and is compatible with NMS AC access control software.

KDH-KZ3000-IP-U

KDH-KZ3000-IP-U

INTEGRATED CONTROLLER

The KDH-KZ3000-IP-U controller working with Unique cards 125 Khz is designed to be part of an access control system and to be mounted on the wall without an additional box. A 32-bit processor ensures fast and reliable data processing. This is a single door controller. With an additional reader (also with a keyboard) it can be used for two-way control. It is possible to set one of four identification modes: Card only (default mode); PIN only; Card or PIN; Card + PIN

KDH-KZ3000-IP-U can work independently (keyboard programming) or in network mode. In network mode, it can work online or offline and is compatible with NMS AC access control software.

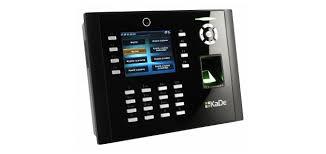

KDH-TA500CFP-IP-U/M/D

KDH-TA500CFP-IP-U/M/D

TIME ATTENDANCE TERMINAL

Time and attendance and access control terminal compatible with NMS AC access control software. The user can identify themselves with Unique, Mifare Classic, Mifare Desfire cards or fingerprint.
The terminal has a colour display with 8 function buttons. There is memory for 10,000 cards, 8,000 fingerprints and 200,000 events. It supports TCP/IP communication and their USN port. Atipassback function.
WARNING! A USB programmer model KDH-CADM500-FP is required to enter fingerprints into the system.

KDH-TA500C-IP-U/M/D

KDH-TA500C-IP-U/M/D

TIME ATTENDANCE TERMINAL

Time and attendance and access control terminal compatible with NMS AC access control software. User can identify with Unique, Mifare Classic, Mifare Desfire cards. The terminal has a colour display with 8 function buttons. It has memory for 50000 users, 150000 events. It supports TCP/IP communication and has a USN port. Atipassback function.

NMS ADVANCED CONTROL

ACCESS CONTROL SOFTWARE

NMS ADVANCED CONTROL is a new software designed for physical access control systems. It works with standard KDH-KS3012-IP, KDH-KS3024-IP, KDH-KZ3000FP-IP and KDH-KZ3000-IP controllers. Thanks to the client-server architecture, it is possible to manage from multiple workstations (2 stations are free with the license).The system is easy to install and has an intuitive graphical user interface. Through NMS AC the operator has the possibility to: - define system parameters (create operator permissions, licenses, copies);
- configuration of physical parameters of system components (controllers, doors, readers);
- define logical elements (schedules, access levels, tabs);
- defining scenarios that react automatically to system events;
- online monitoring of system status using system element icons located on site maps (with hierarchical structure), and through messages displayed in the event stack;
- viewing user snapshots after using the map;
- display images from cameras located in controlled door areas - automatically after an event or when the icon is clicked;
- floor access control via a reader located in the elevator car

- access control to lockers in changing rooms - up to 69 with one set of controller, modules and reader

- generation of filtered event reports (automatically or on demand) and saving in csv or html format (with the option to print to pdf);
The NMS AC also offers a number of features such as: access after using 2, 3 or 4 cards, opening a controlled door using a so-called "first opening card" with special permissions, access after operator confirmation, lockout and back pass protection in the controller. etc.

IP controllers communicate with the server via Ethernet. In the current software version the system can manage up to 128 controllers (8 with a free license. If more controllers are needed, expansion licenses are purchased).

Off-the-shelf computer configurations suitable for servers and workstations are available with Windows 10 licensed and NMS AC software configured.

For more information contact our sales department

Readers, encoders and cards

KDH-C130M-BLACK

KDH-C130M-BLACK

DOOR READER FOR CONTACTLESS MIFARE 13.6 MHz CARDS

The KaDe 130 series brushes integrate perfectly into any interior - traditional or more modern.The durable ABS plastic housing and IP66 protection allow the KaDe 130 series brushes to be installed both indoors and outdoors.   The readers support the most common Wiegand output interface, allowing them to be used in virtually any access control system. Built-in audio visual annunciators, a buzzer and a green/red LED, can be connected to the outputs of the corresponding access controller. This allows the generation of audible and visual signals according to the type of event configured in the access control system.

KDH-C130U-BLACK

KDH-C130U-BLACK

UNIQUE 125KHz CARD READER

KaDe 130 series readers are elegant and fit into any interior.
The readers support the most common Wiegand output interface, which practically allows them to be used in almost any access control system.

The built-in audio visual signalers - buzzer and green-red LED - can be connected to the outputs of the corresponding access controller. This allows the generation of audible and visual alerts according to the type of event configured in the access control system.

KDH-CK130M-BLACK

KDH-CK130M-BLACK

READER FOR MIFARE 13.6 MHz CARDS WITH KEYPAD

KaDe 130 series code reader that features a clean and user-oriented design. The durable ABS plastic housing and IP66 protection allow KaDe 130 series readers to be installed both indoors and outdoors.
The readers support the most common output interface Wiegand, which practically allows them to be used in almost any access control system.
The built-in keypad allows other authorization methods besides reading an RFID card. Access can be done with a PIN or a combination of card and PIN.

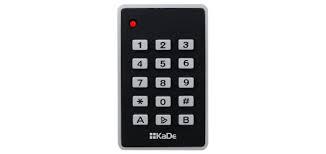

KDH-CK130U-BLACK

KDH-CK130U-BLACK

READER FOR UNIQUE 125KHz CARDS WITH KEYPAD

The KaDe 130 series brushes integrate perfectly into any interior - traditional or more modern.The durable ABS plastic housing and IP66 protection allow the KaDe 130 series brushes to be installed both indoors and outdoors.   The readers support the most common Wiegand output interface, allowing them to be used in virtually any access control system. The built-in keypad allows other authorization methods besides RFID card reading. Access can be by PIN or a combination of card and PIN.

KDH-C130M-7UID

KDH-C130M-7UID

READER FOR CONTACTLESS MIFARE PLUS 13.6MHz CARDS

The reader allows reading the full identification number (7UID) from Mifare Plus® and Mifare DESFire® cards. The durable ABS plastic housing and IP66 protection allow the KaDe 130 series readers to be installed both indoors and outdoors. The readers support the most common output interface, Wiegand, with the ability to read a 56-bit card number (7UID).The built-in audio visual annunciators, a buzzer and a green/red LED, can be connected to the outputs of the corresponding access controller. This allows the generation of audible and visual alerts according to the type of event configured in the access control system.

KDH-C330U/H/M-BLACK

KDH-C330U/H/M-BLACK

UNIVERSAL PROXIMITY CARD READER

The KaDe 330 series brushes feature a clean and elegant design that fits into any interior.
Durable ABS plastic housing and IP66 protection allow the KaDe 330 series brushes to be installed both indoors and outdoors.
The readers support the most common Wiegand output interface, allowing them to be used in virtually any access control system.
Built-in audio visual annunciators, a buzzer and green/red LED, can be connected to the outputs of the corresponding access controller. This allows the generation of audible and visual signals according to the type of event configured in the access control system.
The 330 series readers are multi-format readers. They operate at 123 kHz and 13.56 MHz frequencies, allowing the reading of card numbers in Unique (26 or 34 bits output), HID® Prox (26 or 37 bits output automatically) and MIFARE® (26 or 34 bits output) formats. This makes the system more flexible and allows more than one card to be used in the same physical access control facility as standard. The built-in keypad allows for other authorization methods besides RFID card reading. Access can be by PIN or a combination of card and PIN.

KDH-CK130M-7UID

KDH-CK130M-7UID

READER FOR CONTACTLESS MIFARE PLUS 13.6MHz CARDS WITH KEYBOARD

The reader allows reading the full identification number (7UID) from Mifare Plus® and Mifare DESFire® cards. The durable ABS plastic housing and IP66 protection allow the KaDe 130 series readers to be installed both indoors and outdoors. The readers support the most common output interface, Wiegand, with the ability to read a 56-bit card number (7UID).The built-in audio visual annunciators, a buzzer and a green/red LED, can be connected to the outputs of the corresponding access controller. This allows the generation of audible and visual alerts according to the type of event configured in the access control system. The built-in keypad allows for other authorization methods besides RFID card reading. Access can be by PIN or a combination of card and PIN.

KDH-CK330U/H/M -IVORY

KDH-CK330U/H/M -IVORY

UNIVERSAL PROXIMITY READER WITH KEYPAD​

Readers from the KaDe 330 series are characterized by a clean and elegant design that fits into any interior.
The durable ABS plastic housing and IP66 protection allow KaDe 330 series readers to be installed both indoors and outdoors.
The readers support the most common Wiegand output interface, which practically allows their use in almost any access control system. .
he built-in audio visual signalers - buzzer and green-red LED - can be connected to the outputs of the corresponding access controller. This allows the generation of audible and visual alerts according to the type of event configured in the access control system..
The 330 series readers are multi-format readers. They operate at 123 kHz and 13.56 MHz frequency, allowing card number reading in Unique (26 or 34 bit output), HID® Prox (26 or 37 bit output automatically) and MIFARE® (26 or 34 bit output) formats ). This makes the system more flexible and allows the standard use of more than one card in the same facility with physical access control. The built-in keyboard allows other authorization methods besides reading an RFID card. Access can be done with a PIN or a combination of card and PIN.

KDH-C150MQR

KDH-C150MQR

READER OF MIFARE CARDS AND QR CODE

A multi-function reader that allows the reading of a User Identification Number (UID) from Mifare Classic cards and a QR code from a smartphone display or printed on a piece of paper. Supports Wiegand interface( 26, 34 bit)

KDH-CADM500-FP

KDH-CADM500-FP

FINGERPRINT ENCODER

Biometric reader for adding fingerprints designed for terminal - KDH-TA500CFP-IP. Compatible with NMS AC access control software.

KDH-KZ6000FR-IP

KDH-KZ6000FR-IP

REMOTE BODY TEMPERATURE MEASUREMENT TERMINAL WITH RECOGNITION FUNCTION FACE AND MASK

Detection of people with fever;

Contactless body temperature measurement with using infrared rays;

Content analysis based on Deep Learning

Configuring Door unlock mode;

Human-sounding voice prompt;

Web Server;

Detection of people not wearing masks;

Measurement accuracy to +/- 0.3°;

Alarm Outputs;

Storage data on SD card;

8-inch LCD touch screen;

Two-way Audio

KDH-CADM-M24-II

KDH-CADM-U24-II

ENCODER FOR UNIQUE CARDS​

The encoder is designed to facilitate the retrieval of card numbers into the KaDe database or similar programs.
This model is designed to read UNIQUE cards (125 kHz) only. The reader is equipped with a USB interface that allows you to connect it to a standard USB port on a PC with KaDe access control software installed. The reader can also be used for other applications because it can work with any editor or editable fields in various applications. After placing the card on the base of the reader, the card number is automatically read and displayed in the field where the cursor was. In the KaDe access control system, the reader is used as one of the options in the process of entering card numbers into the system database. This is the most convenient option, especially for a large number of cards.

KDH-CADM-M32-II

KDH-CADM-M32-II

MIFARE CARD ENCODER

The encoder is designed to facilitate the retrieval of card numbers into the KaDe database or similar programs.
This model is designed to read only MIFARE cards (13.56 MHz). The reader is equipped with a USB interface that allows you to connect it to a standard USB port on a PC with KaDe access control software installed. The reader can also be used for other applications because it can work with any editor or editable fields in various applications. After placing the card on the base of the reader, the card number is automatically read and displayed in the field where the cursor was. In the KaDe access control system, the reader is used as one of the options in the process of entering card numbers into the system database. This is the most convenient option, especially for a large number of cards.

KDA-M1002

KDA-M1002

CONTACTLESS MIFARE CARD

Type: ISO card
Format: MIFARE®
Operating frequency: 13.56 MHz


KDA-U1001

KDA-U1001

  CONTACTLESS UNIQE CARD

Type: ISO card

Format: UNIQUE

Operating frequency:125 kHz

KDA-U1002

KDA-U1002

CONTACTLESS UNIQE CARD

Type: ISO card

Format: UNIQUE

Operating frequency:125 kHz

MIFARE CARD 7UID

KDA-MP1002

CONTACTLESS CARD MIFARE

Type: ISO card

Format: MIFARE Plus® х 2kB card, 7 UID Bytes

Operating frequency: 13.56 MHz

KDA-M1004

KDA-M1004

CONTACTLESS MIFARE BRACELET

Type: bracelet
Format: MIFARE®
Operating frequency: 13.56 MHz

KDA-U1004

KDA-U1004

CONTACTLESS UNIQUE BRACELET

Type: bracelet

Format: UNIQUE

Operating frequency:125 kHz

KDA-M1003

KDA-M1003

CONTAINTLESS MIFARE KEY RING

Type: key ring
Format: MIFARE®
Operating frequency: 13.56 MHz ​

KDA-U1003

KDA-U1003

CONTACTLESS UNIQUE KEY RING

Type: key ring
Format: UNIQUE
Operating frequency:125 kHz

Electromagnetic strike,Magnetic door locks,EXIT buttons​

KDA-STRIKE12SO

KDA-STRIKE12SO

ELECTROMAGNETIC SRIKE fail-secure WITH UNLOCKING FUNCTION


Electromagnetic strike (NC) with the possibility of manual unlocking of the lock in the open state. Current consumption 570mA. Can be used in steel, aluminium, wood and PVC profiles, both internal and external, with the possibility of installation for left and right doors, as well as in vertical and horizontal position. The 4mm adjustment range facilitates installation and ensures precise adjustment of the electric counter to the handle lock.

Can be installed together with a counter plate:
KDA-BP130 - Counter plate, short, galvanized (130x25x3mm)
KDA-BP250 -Counter plate, long, galvanized (250x25x3mm)

Explanation of the symbols configuring the model:
S-fail-secure
R- fail-safe
N-low consumption
T- narrow
M- with microswitch
P- with memory
O- with unlock function

KDA-STRIKE12RNM

KDA-STRIKE12RN

FAIL-SAFE ELECTROMAGNETIC STRIKE WITH LOW CONSUMPTION


Electromagnetic strike (NO) with low current consumption (260mA). It can be used in steel, aluminium, wood and PVC profiles, both internal and external, with the possibility of installation for left and right doors, as well as in vertical and horizontal position. The 4mm adjustment range facilitates installation and ensures precise adjustment of the electric counter to the handle lock.


Can be installed together with a counter plate:
KDA-BP130 - Counter plate, short, galvanized (130x25x3mm)
KDA-BP250 -Counter plate, long, galvanized (250x25x3mm)

Explanation of the symbols configuring the model:
S-fail-secure
R- fail-safe
N-low consumption
T- narrow
M- with microswitch
P- with memory
O- with unlock function

KDA-STRIKE12S

KDA-STRIKE12SP

ELECTROMAGNETIC STRIKE fail-secure WITH MEMORY


Electromagnetic strike (NC). Current consumption 570mA. It can be used in steel, aluminium, wood and PVC profiles, both internal and external, with the possibility of installation for left and right doors, as well as in vertical and horizontal position. The 4mm adjustment range facilitates installation and ensures precise adjustment of the electric counter to the handle lock.


Can be installed together with a counter plate:
KDA-BP130 - Counter plate, short, galvanized (130x25x3mm)
KDA-BP250 -Counter plate, long, galvanized (250x25x3mm)

Explanation of the symbols configuring the model:
S-fail-secure
R- fail-safe
N-low consumption
T- narrow
M- with microswitch
P- with memory
O- with unlock function

KDA-STRIKE12SNM-II

KDA-STRIKE12SN-II

ELECTROMAGNETIC STRIKE fail-secure WITH LOW CONSUMPTION


Electromagnetic strike (NC) with low current consumption (260mA). It can be used in steel, aluminium, wood and PVC profiles, both internal and external, with the possibility of installation for left and right doors, as well as in vertical and horizontal position. The 4mm adjustment range facilitates installation and ensures precise adjustment of the electric counter to the handle lock.


Can be installed together with a counter plate:
KDA-BP130 - Counter plate, short, galvanized (130x25x3mm)
KDA-BP250 -Counter plate, long, galvanized (250x25x3mm)

Explanation of the symbols configuring the model:
S-fail-secure
R- fail-safe
N-low consumption
T- narrow
M- with microswitch
P- with memory
O- with unlock function

KDA-LOCK180Z-II

KDA-LOCK180Z-II

MAGNETIC LOCK​

Type locking: without power normally open (NO)

Power consumption: 280 mA for 12VAC

Power supply: 12V DC

Dimensions: 170 x 39 x 24

Holding force for electromagnetic/maximum pressure: 160Kg

Mounting type: surface

Additional functions : door lock sensor (Hall sensor)

KDA-LOCK180P

KDA-LOCK180P

MAGNETIC LOCK

Type locking: without power normally open (NO)

Power consumption:6 300mA за 12VAC / 300mA за 24VDC

Power supply: 12V or 24VDC

Dimensions: 340 x 42 x 21

Holding force for electromagnetic/maximum pressure:: 180Kg

Mounting type: surface

Additional functions : for double doors

KDA-LOCK180ZW

KDA-LOCK180ZW

MAGNETIC LOCK

Type locking: without power normally open (NO)

Power consumption: 300mA for 12VAC / 150mA for 24VDC

Power supply: 12V or 24VDC

Dimensions: 190 x 32 x 22

Holding force for electromagnetic/maximum pressure:: 180Kg

Mounting type: built-in

Additional functions : door lock sensor (Hall sensor)

KDA-LOCK180W

KDA-LOCK180W

MAGNETIC LOCK

Type locking: without power normally open (NO)

Power consumption: 300mA for 12VAC / 150mA for 24VDC

Power supply: 12V or 24VDC

Dimensions: 190 x 32 x 22

Holding force for electromagnetic/maximum pressure:: 180Kg

Mounting type: built-in

KDA-LOCK350DZC

KDA-LOCK350DZC

MAGNETIC LOCK

Type locking: without power normally open (NO)

 Power consumption: 480mA for 12VAC / 240mA for 24VDC

 Power supply: 12V or 24VDC

Dimensions: 288x 55x 29

Holding force for electromagnetic/maximum pressure: 310Kg

Mounting type: surface

Additional functions : door lock sensor (Hall sensor), open door sensor.

KDA-LOCK280DZC-II

KDA-LOCK280DZC-II

MAGNETIC LOCK

Type locking: without power normally open (NO)

 Power consumption: 480mA for 12VAC / 240mA for 24VDC

 Power supply: 12V or 24VDC

Dimensions: 250x 47x 29

Holding force for electromagnetic/maximum pressure: 280Kg

Mounting type: surface

Additional functions : door lock sensor (Hall sensor), open door sensor.

KDA-LOCK500DZC-II

KDA-LOCK500DZC-II

MAGNETIC LOCK

Type locking: without power normally open (NO)

 Power consumption: 600mA for 12VAC / 300mA for 24VDC

 Power supply: 12V or 24VDC

Dimensions: 265x 71x 40

Holding force for electromagnetic/maximum pressure: 500Kg

Type of installation: surface.

KDA-BOLT150

KDA-BOLT150

ELECTROMAGNETIC BOLT

Type locking: without power normally open (NO)

Power consumption: 1400mA/150 mA

Power supply: 12V DC

Dimensions: 200x 28 x36

Holding force for electromagnetic/maximum pressure: 160Kg

Mounting type: built-in

KDA-BU180

KDA-BU180

MOUNTING PLATE

Mounting plate type U for electromagnetic lock KDA-LOCK180Z-II.

KDA-BLZ280

KDA-BLZ280

MOUNTING PLATE

Set mounting plates type Z/L for electromagnetic lock KDA-LOCK280DZC-II

KDA-BLZ500-II

KDA-BLZ500-II

MOUNTING PLATE

Set mounting plates type Z/L for electromagnetic lock KDA-LOCK350DZC-II

KDA-BL500-II

KDA-BZL500-II

MOUNTING PLATE

Set mounting plates type Z/L for electromagnetic lock KDA-LOCK500DZC-II

KDH-EXIT1093

KDH-EXIT1093

CONTACTLESS EXIT BUTTON


Type of contact: NO/NC/C

Dimensions: 80 x 32 x 23 mm

Mounting type: surface

Operating temperature: -20 до 50

Electronic control (power supply required): yes

Type: Contactless for outdoor installation

Capacity : 3A / 30VDC

KDH-EXIT1040

KDH-EXIT1040

EXIT BUTTON

Type of contact: NO / C

Dimensions: 83 x 32 x 25 mm

Mounting type: surface

Operating temperature: -10 до 55

Electronic control (power supply required): yes

Type: button

Capacity : 3A / 36VDC

KDH-EXIT1080

KDH-EXIT1060

EXIT BUTTON

 Type of contact: NO/NC/C

Dimensions: 85 x 55 x 21 mm

Mounting type: surface

Operating temperature: 0 до 55

Electronic control (power supply required): yes

Type: touch, for indoor installation

Capacity : 3A / 30VDC

KDH-EXIT1030-P

KDH-EXIT1030-P

EMERGENCY EXIT BUTTON

Emergency exit button with two pairs of C/NO/NC contacts.

Power supplies

KDH-ZAS12/6/17

KDH-ZAS12/6/17

POWER SUPPLY

The power supply unit for powering KaDe KS2000 and KS3000 series controllers. It guarantees an uninterrupted power supply with a direct current of 12 V. Backed up by a rechargeable battery. There is space for a 12V 18Ah battery in the box.

Power voltage: 110V-240 V AC

Power consumption: 1.52A@230V AC max.

Output voltage : 13,5V-13,7V DC

Output current: 5A + 1A for battery charging

Battery surge protection: yes

APSAAT5

APSAAT5

POWER SUPPLY

The power supply unit is designed to power KaDe KS2000 and KS3000 series controllers. It guarantees an uninterruptible 12 V DC power supply. Backed up with a rechargeable battery. Space is provided in the box for a 12V 18Ah battery.

Power voltage: 176V-264 V AC

Power consumption: 0,45A@230V AC max.

Output voltage: 9,5V-13,8V DC

Output current: 2A + 0,5 for battery charging

Battery surge protection: yes

APSAAT4

APSAAT4

POWER SUPPLY​

The power supply unit is designed to power access control systems. It guarantees uninterrupted power supply with a constant current of 12 V. Backed up with a rechargeable battery. There is space for a 12V 7Ah battery in the box.

Power voltage: 176V-264 V AC

Power consumption: 0,72A@230V AC max.

Output voltage: 9,5V-13,8V DC

Output current: 4,5A + 0,5 for battery charging

Battery surge protection: yes
