EN54 PUBLIC ADDRESS SYSTEM
DIVA COMPACT PUBLIC ADDRESS SYSTEM
The DIVA system is a compact PA VA system, specifically designed for small to medium installations. It has all the basic functions, and meets the requirements of EN54-16 and BS5839/8 for voice alarm, including full system monitoring, monitoring speaker line impedance monitoring, microphone monitoring and monitored interaction with remote devices.
For larger installations to the system up to 15 DIVA-8SG2 units can be added. The amplifiers on the main unit can share power with slaves modules where more is needed
power is required.
DIVA8MG2 MAIN CONTROLLER
The DIVA-8MG2 is a compact 2-channel PA/VA controller with a maximum of 128 zones. It provides enhanced digital audio processing (DSP), a digital message player with up to 45 minutes of message storage, a fully monitored firefighter microphone, amplifier monitoring with switching to spares, and speaker line monitoring for 16 audio lines (8 A/B lines). The DIVA-8MG2 is equipped with 5 audio inputs including one firefighter microphone, one system paging console, one mic/line input and two line inputs for BGM. All audio inputs include volume control, equalizer and VOX activation in the software. The head unit has 2 system status outputs and 2 RS232 serial ports for third party control such as Modbus control.
DIVA8SG2 SLAVE CONTROLLER
The DIVA-8SG2 slave device is an expansion device for the DIVA-8MG2 controller. It increases the number of paging zones by 8 zones for each slave device added to the system. Up to 15 slave devices can be connected to the DIVA-8MG2 controller in a local network. A complete DIVA system provides up to 128 zones (A/B). The DIVA-8SG2 devices are connected to the system via shielded STP CAT5/6 cable (max. length 100m). The DIVA-8SG2 drives the same 1000 W capacity as the DIVA-8MG2 controller (at 100 V) on each amplifier channel (music + voice). The individual music or voice channel or both channels can be manually/automatically zone routed via the DIVA software settings. For maximum flexibility, connected amplifiers can distribute their power among multiple slave devices, or additional amplifier channels can be added to the system to help when more output power is needed. The 100V amplifier signal simply connects to the slaves to create a 100V signal bus
.

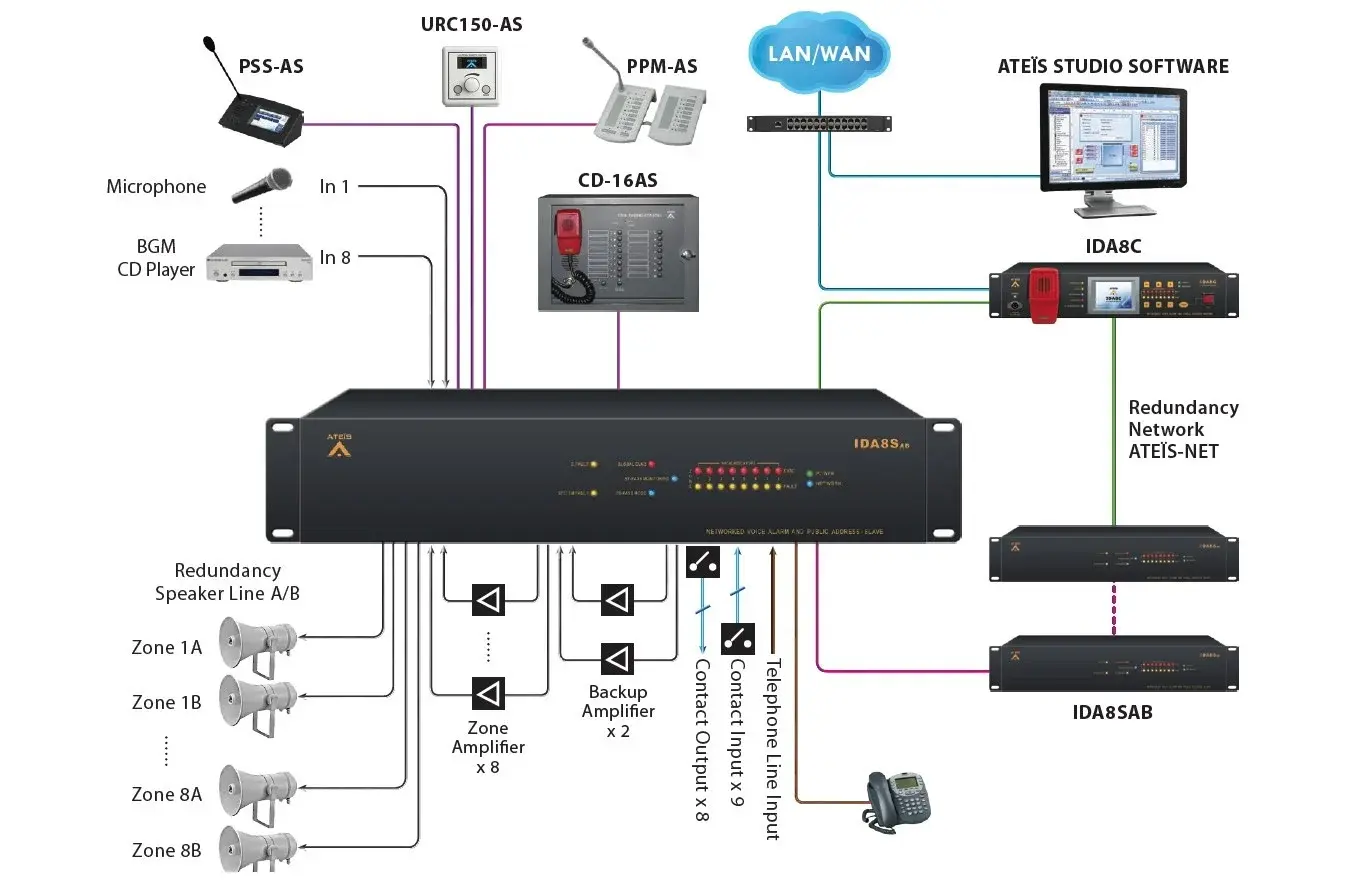

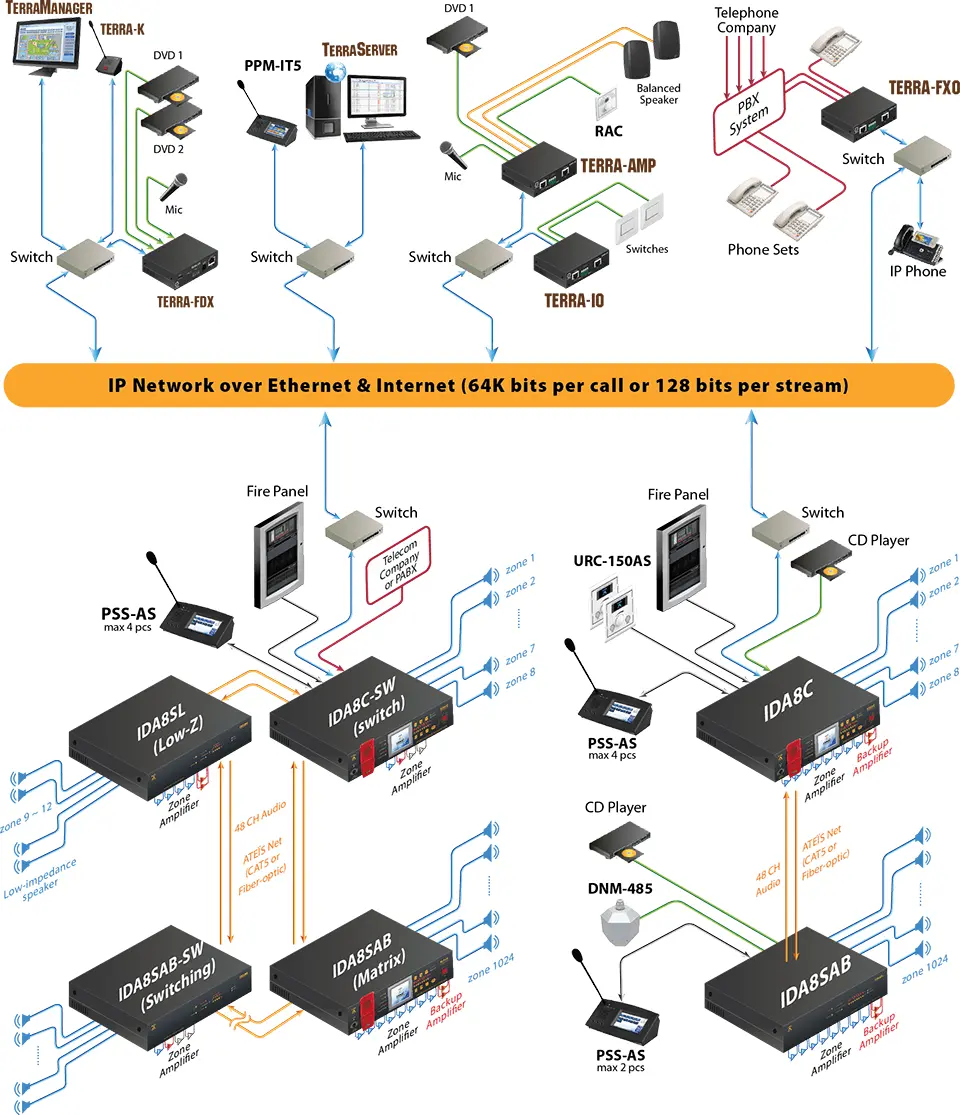

IDA8 integrated network system
The IDA8 system is a highly integrated PA/VA network system that meets current IP and/or optical network requirements. This system enables the realization of even the most complex system designs. The IDA8 meets the requirements and is compliant with EN54-16, ISO 7240-16, UL60065, UL2572 and BS5839/8. Numerous modules are available to support large installations.
IDA8SAB SLAVE CONTROLLER
The IDA8SAB slave unit features advanced digital audio signal processing (DSP), with matrix functions and a digital message player, along with amplifier monitoring and "HOT SWAP". There is also speaker line impedance monitoring. It supports up to two PSS-AS monitored microphone consoles, up to eight monitored amplifiers plus two spare amplifiers and paging in 8 different zones per device with A/B line detection (BS 5839-part 8).
Includes 8 monitored zones for 25V/70V/100V outputs with simultaneous selection, control inputs and contact outputs.
The IDA8SAB provides the zone extension and audio inputs and outputs of IDA8 systems using a secure 48-channel audio and data network over CAT5/6 or fiber network, which can be a network of one controller and up to 31 slave devices via ATEÏS local-net.
Two card slots can be equipped with additional 4-channel analog audio input/output cards 4-channel AES/EBU digital audio input/output cards.

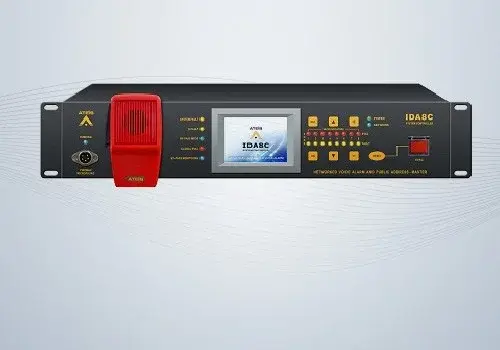

IDA8C MAIN CONTROLLER WITH MATRIX FUNCTION
The IDA8C controller features advanced digital audio signal processing (DSP), has matrix control functions, a digital message player, a fully supervised firefighter microphone and emergency message trigger buttons.
The IDA8C monitors the state of the amplifiers and hot-swaps between them. The speaker line impedance is also monitored.
The controller supports up to four PSS-AS supervised microphone consoles and up to eight supervised amplifiers plus two spare amplifiers, paging across 8 different device zones with A/B detection (BS 5839 part 8). Includes 8 supervised zones for 25V/70V/100V outputs with simultaneous selection, control inputs and contact outputs.
The two card slots are provided for either 4-channel audio input with 0 dB or 4-channel audio cards. Optional AES/EBU cards are also available.
ATEIS Amplifiers

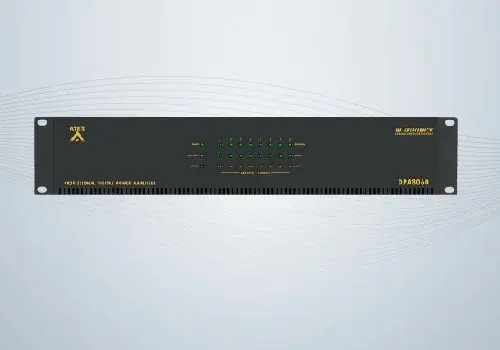

DPA ATEIS AMPLIFIER SERIES
The DPA is a digital power amplifier with extremely low power consumption (0.2 W per channel) in standby mode and a high amplification efficiency of 90%. A four-step DIP switch can be configured to enable/disable the standby function (power save mode) when powered from AC mains; to request front panel LEDs to comply with EN54-16; and to enable/disable battery monitoring.
The amplifiers are powered by 100 VAC ~ 240 VAC 50/60 Hz or 48 VDC battery backup. Each model has line inputs with individual volume gain, status LEDs (power, battery, fault, total fault, overload, and signal) on the front panel, and DPA models can connect two channels to double the power.
Four models are available: the DPA8060 (60W x 8CH), the DPA4125 (125W x 4CH), the DPA4250 (250W x 4CH) and the DPA2500 (500W x 2CH).
ATEIS Microphones
PPM-ASWJB / PSM 8WJJB MICROPHONES
PPM-AS/PSM is a unidirectional addressable condenser paging microphone for IDA8 and DIVA system. In accordance with BS5839, it is monitored using RS485 protocol over STP CAT5/6 cable and transmits both audio and power from the paging console to the system modules. The PPM-AS/PSM has a 'gooseneck' microphone, push-to-talk button, zone select keys and monitor speaker. The buttons represent a zone or group of zones and can be easily defined in the software using a simple selection matrix. All buttons can be programmed from the ATEÏS Studio software and each button can be programmed for PTT (Push To Talk) or interlock function.
PPM-IT5 IP BASED PAGING CONSOLE
IP based paging console with touch screen and intercom
The PPM-IT5 is an IP tocuh paging console that allows intercom, paging for calls, broadcast messaging and more. All paging parameters required for operation can be programmed: zones assigned to different buttons, zone name, zone group, message triggering or event control. A total of 168 keys on 14 pages allow the selection of a zone or a group of zones. Pre-recorded messages and ringer can be stored in the PPM-IT5 IP paging console.
All settings are made via web pages with your favorite web browser. Thanks to powerful echo cancellation, the PPM-IT5 provides clear sound for full duplex conversation.
SHM1 FIREMAN MICROPHONE
The SHM1 is a fireman microphone for all, group or zone calls. EN 54-16 monitoring is implemented thanks to the IDASEC interface.
One microphone is supplied and included with the DIVA8 system.
PM1 PAGING MICCROPHONE
The PM1 is a single-zone desktop microphone with a built-in preamplifier that can be used with all ATEÏS brand products. The PM1 has a PTT button, gooseneck microphone and 0 dB symmetrical output. It can be powered from an external power adapter, 24 VDC. In case the PM1 is connected to a device that cannot supply the required power. The PM1 comes with an activation button for the device and a two-color LED for status indication; Using one audio input + one outlet (optional EVAQg2 required).
EN54-24 Speakers
CEILING MOUNT SPEAKERS TYPE AB
One microphone is supplied and included with the DIVA8 system. Ceiling mounted speakers type A/B with different wattages. EN 54-24 certified .
HORN SPEAKERS
Two-way horn loudspeakers for voice announcements, with different power ratings, certified according to EN 54-24.

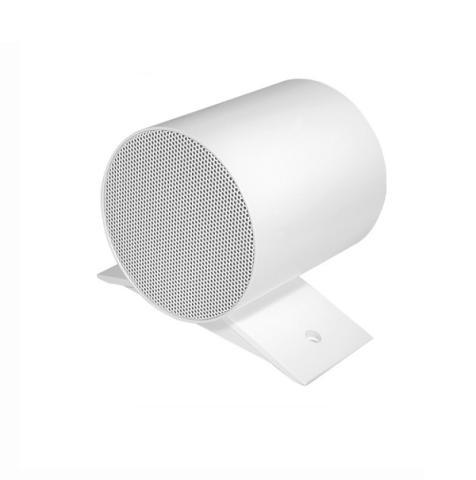

SOUND PROJECTORS FOR VOICE ANNOUNCEMENTS
Bidirectional sound projectors for voice announcements, with different power, certified according to EN 54-24
CEILING MOUNT SPEAKERS
Speakers for wall mounting with different wattages. Certified according to EN 54-24.

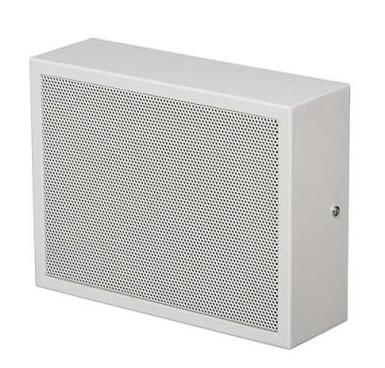

WALL MOUNT SPEAKERS
Wall mount speakers with different power. Certified in accordance with EN 54-24.
COLUMN SOUND SPEAKERS
Loudspeakers for sound - column type with different power. Certified according to EN 54-24.
IP WALL MOUNT SPEAKERS
IP-network PoE speaker, 2-way monitor box, 15W power.
IP CEILING MOUNT SPEAKERS
IP-network PoE speaker, 2-way monitor box, 15W power. IP-network PoE speaker, 2-way bas-reflex ceiling speaker, 15W power.
