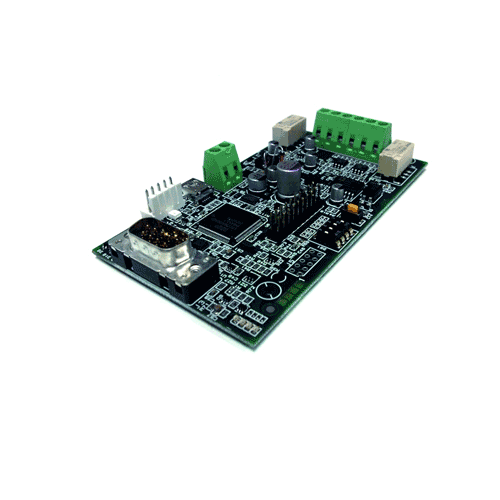

ONERING Network card for Teledata One control panel
With One Ring you can connect in a ring network up to 32 TeledataOne, so is possible to create a system that shares all information of each single panel.
OneRing – Network Card for Teledata One
Expansion card for TeledataOne fire alarm center. It allows up to 32 control panels to be connected in a ring grid, allowing information sharing and cross-activation of outputs. The created network of panels is resistant to damage and supports the transfer of information between different modules, even if the central panel is operating in a degraded mode.
- Ring topology up to 32 panels with full data synchronization
- CAN BUS communication (up to 50 Kbps)
- High fault tolerance, capable of maintaining the necessary information between points in the event of a network crash
- Compatibility: Teledata One (built-in directly into the headquarters)
- Range: up to 1.2 km
| Разстояние между контролните панели / Distance between control panels: | До 1200 м (кабел за CAN dataline, шина RS485) / Up to 1200 m (cable for CAN dataline, bus RS485) |
Скорост на комуникацията / Speed of communication: | 50 Kbps |
Свързаност / Connection: | CAN bus |
| Захранване / Power supply: | 24 VDC |
| Ток в режим на готовност / Stand by current: | 33mA |
| Ток при аларма / Alarm current: | 33 mA |
Монтаж / Installation: | Вътре в контролния панел на основната платка /Inside the control panel on the mastercard |
| Размери / Dimensions: | 05 x 60 x 30 mm |
