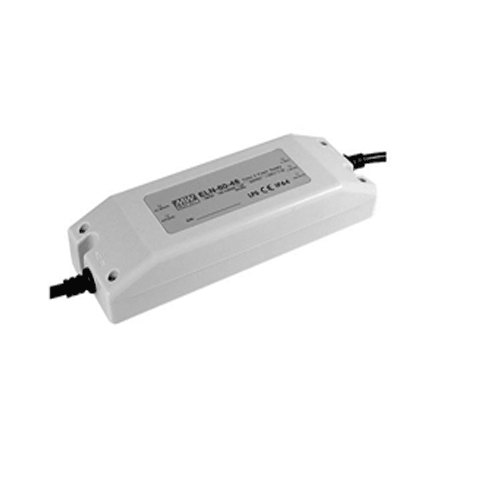

Additional power supply for TeledataOne (necessary from loop 5)
Auxiliary power supply for TELEDATAONE is necessary if expansion cards and accessories are installed.
It is possible to install up to two ONEPW, depending on the number of expansion cards used.
The optional ONEPW power supply for the TeledataOne system is designed to provide additional power when installing expansion cards and accessories.
Main functional characteristics:
- Designed for TeledataOne systems.
- Necessary when adding expansion modules or peripherals.
- Possibility to install up to two storageunits (ONEPW) depending on the configuration.
- Application:
- It is used in TeledataOne communication systems when the main power supply is insufficient due to installed additional modules.
- Provides stable power supply and protection in emergency situations.
Захранване / Power Supply: | 230V AC 50Hz |
Изходно напрежение / Output: | 27,6VDC |
Максимален ток / Output current | 2.3A |
Мощност / Power: | 60W |
Защита от късо съединение / Short Circuit Protection: | Режим на засичане, възстановява се автоматично след отстраняване на неизправността / Hiccup mode, recovers automatically after fault condition is removed. |
Защита от свръхнапрежение / Overdue protection: | Автоматично изключване и повторно включване след нормализация / Automatic shutdown and re -turn after normalization |
Степен на защита / Protection Level: | IP30 |
Работна температура / Operating Temperature [°C] | -5 to ++40°C |
Температура на съхранение [°C] / Storage Temperature [°C] | -40°C до +70°C, 10–95% влажност |
Размери / Dimensions | 349 × 180 × 61 mm |
Тегло / Weight | 0.73 kg |
Контролен панел / Control panel: | TeledataOne |
