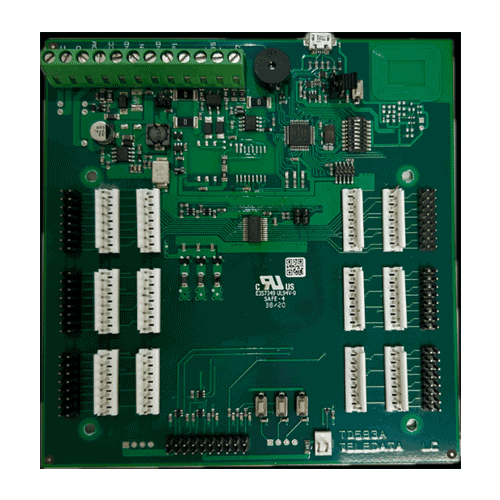

ONEMIMIC – Interface Module for TeledataOne Synoptic Panel and Fire System

Main function:

ONEMIMIC serves as an interface between TeledataOne and a synoptic panel, transmitting information about the status of the fire system (alarms, activated zones, test mode) through LED indication.

Key features:

1. Connection to the fire station:

  • RS-485 communicateswith the TeledataOne control panel.
  • Support for up to 16 ONEMIMIC modules in one system (addressing via DIP switch)).

2. LED indication:

  • 48 outputs for zone LEDs (indicate the status of specific zones).
  • Additional outputs for common events:
    • System malfunction
    • Fire alarm
    • Test mode
  • Test button – checks the correct operation of all LEDs.

3. Zone Grouping (Block Indication):

The system supports 4 LED blocks that cover a total of 192 zones:

  • Block 1: Zones 1–48
  • Block 2: Zones 49–96
  • Block 3: Zones 97–144
  • Block 4: Zones 145–192
Захранване / Power supply:24 VDC
Интерфейс / Interface:RS-485
Брой зонови светодиоди / Number of area LEDs:
48
Допълнителни индикатори / Auxiliary LED'sИзходи за неизправност, тестов бутон / general fault  and test
Макс. брой карти в система / Maximum number of cards per system16 (адресиране с DIP switch) / 16 ONEMIMIC cards, setting the addresses via DIP SWITCH.
Корпус / Housing:Метален (1 mm ламарина) / Pre-painted sheet 1 mm thickness metal case
Размери / Dimensions:243 × 138 × 45 mm


Certificate

In accordance with standards  EN54-2 и EN54-4 Свали
