ONEMIMIC Remote LED card for TeledataOnе

ONEMIMIC Remote LED card for TeledataOnе

https://www.raytron.eu/web/image/product.template/12525/image_1920?unique=efdc7e4

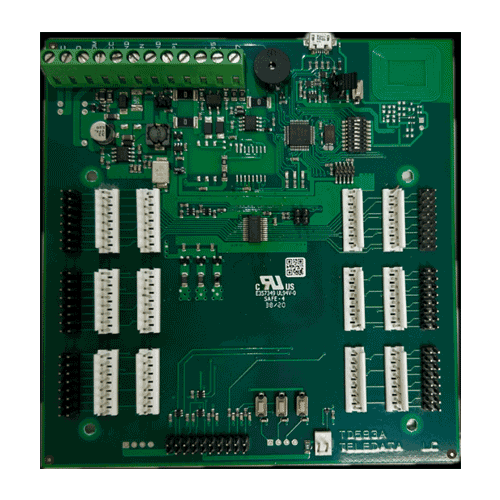

ONEMIMIC connects to the control panel via an RS-485 bus, ONEMIMIC provides information on the status of the fire alarm system, both overall and by zone.

0.00 лв 0.0 BGN 0.00 лв

0.00 лв

This combination does not exist.

Contact us for more information

Share

ONEMIMIC – Interface Module for TeledataOne Synoptic Panel and Fire System

Main function:

ONEMIMIC serves as an interface between TeledataOne and a synoptic panel, transmitting information about the status of the fire system (alarms, activated zones, test mode) through LED indication.

Key features:

1. Connection to the fire station:

  • RS-485 communicateswith the TeledataOne control panel.
  • Support for up to 16 ONEMIMIC modules in one system (addressing via DIP switch)).

2. LED indication:

  • 48 outputs for zone LEDs (indicate the status of specific zones).
  • Additional outputs for common events:
    • System malfunction
    • Fire alarm
    • Test mode
  • Test button – checks the correct operation of all LEDs.

3. Zone Grouping (Block Indication):

The system supports 4 LED blocks that cover a total of 192 zones:

  • Block 1: Zones 1–48
  • Block 2: Zones 49–96
  • Block 3: Zones 97–144
  • Block 4: Zones 145–192
Захранване / Power supply:24 VDC
Интерфейс / Interface:RS-485
Брой зонови светодиоди / Number of area LEDs:
48
Допълнителни индикатори / Auxiliary LED'sИзходи за неизправност, тестов бутон / general fault  and test
Макс. брой карти в система / Maximum number of cards per system16 (адресиране с DIP switch) / 16 ONEMIMIC cards, setting the addresses via DIP SWITCH.
Корпус / Housing:Метален (1 mm ламарина) / Pre-painted sheet 1 mm thickness metal case
Размери / Dimensions:243 × 138 × 45 mm


Certificate

In accordance with standards  EN54-2 и EN54-4 Свали
