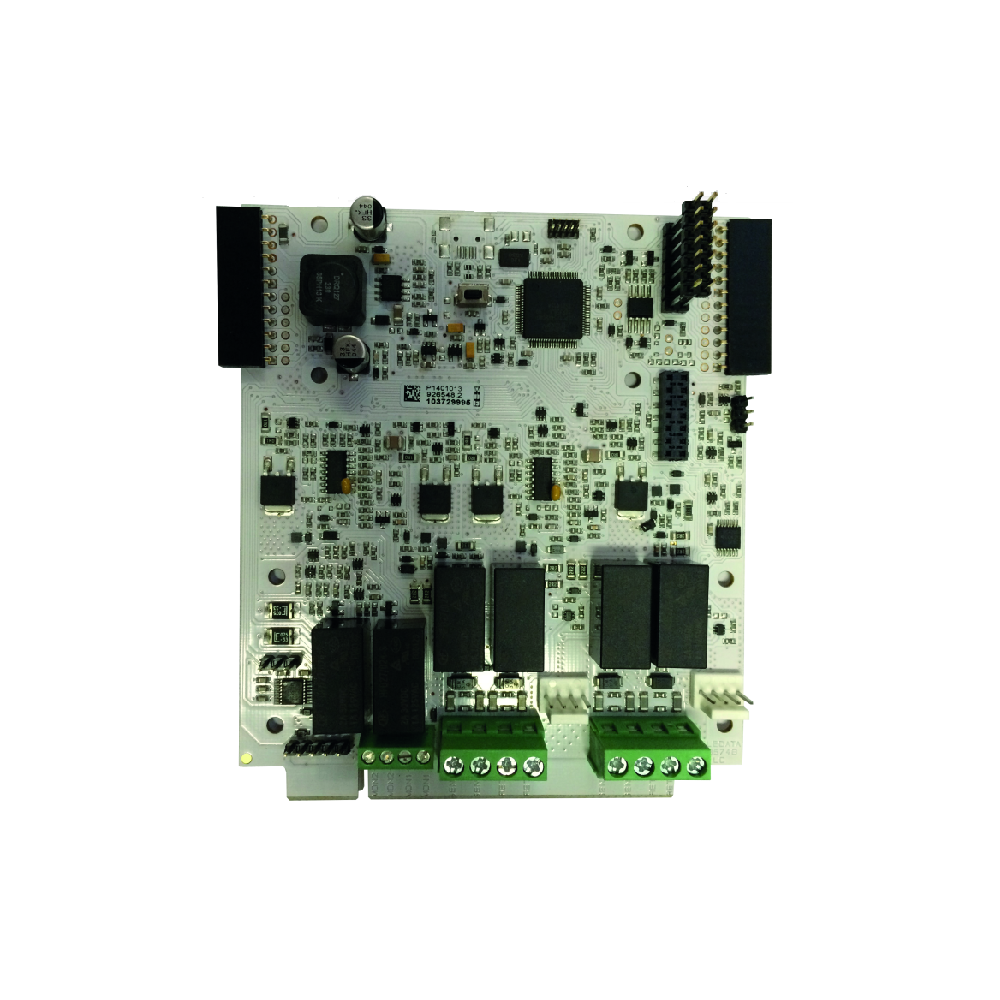

ONE2 Expansion card 2 loops for ONE panel

The ONE2 expansion card for Teledata One is designed to increase the system's capacity with additional loops (circuits) that have fully compatible functions with respect to the main panel.

Main functionalities:

• Adds 2 additional circuits (loops) with capabilities identical to the main panel.
• Supports up to 4 ONE2 cards in one Teledata One (a total of 8 additional circuits + the main one).
• Internal installation – it is mounted directly in the Teledata One panel without changing the design.

Technical specifications:

• Certification: EN54-2 (for fire alarm systems).
• Type of circuit: Configurable as open or closed loop.
• Capacity: Up to 240 devices per loop (depending on the type and protocol).

Relay outputs:

• 2 programmable relays for signaling or controlling external devices.
• Installation: Connects to the main board of Teledata One via a built-in connector.

Advantages:

• Easy system expansion without additional complex configuration.
• Full integration with the core features of Teledata One.
• Suitable for fire alarm systems with EN54 certification.

This solution is ideal for installations requiring a large number of zones with centralized control.
