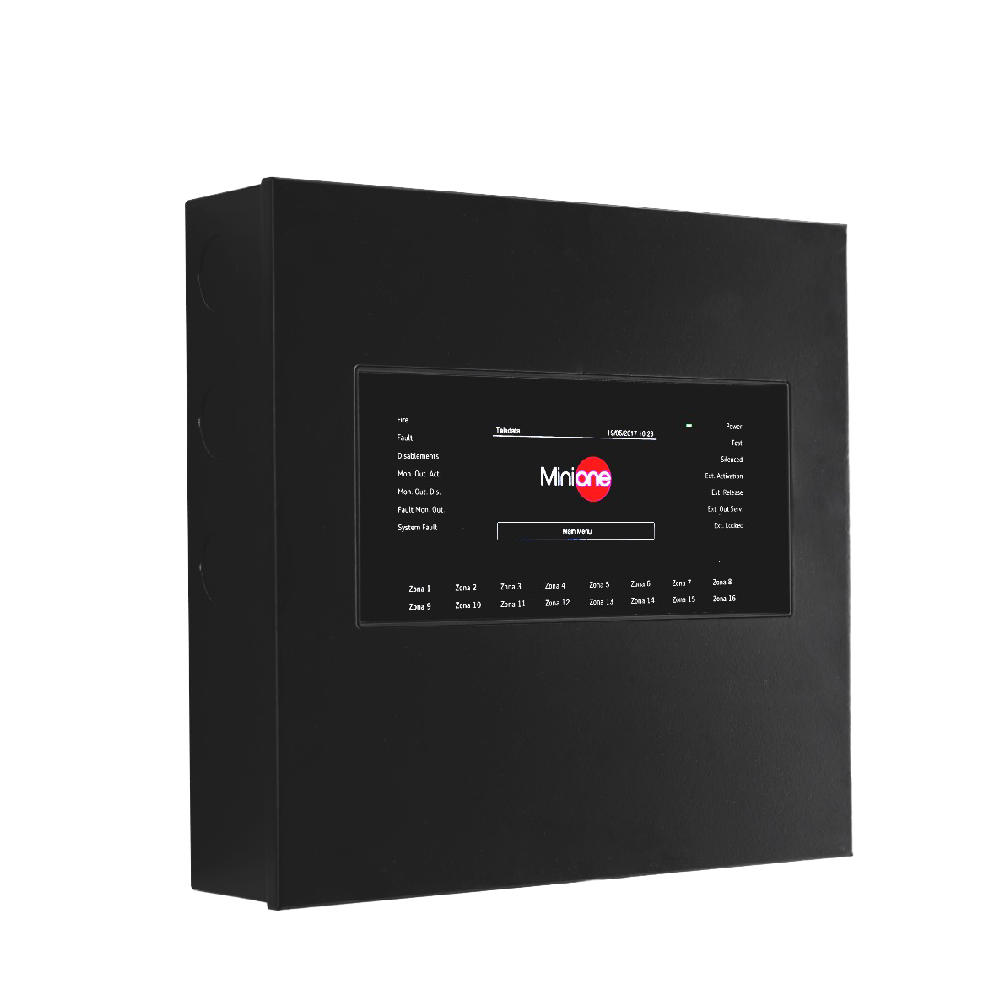

ONE MINI L Addressable fire alarm control panel with 1 loop, without extension, LAN and Repeater

Onemini Light is a single-circuit control panel designed to manage up to 240 addresses, which can be configured as an open or closed loop, making it possible to makes it suitable for a wide range of applications.

Main characteristics:

1. Zone and Device Management: The panel can control zones and devices through a sophisticated programmable logic that allows automated triggering of events in the depending on certain conditions.
2. Diagnostics and monitoring: Connected detectors and devices are monitored and diagnosed in real-time. All test procedures can be performed via the panel, which simplifies and speeds up maintenance.
3. Data Export: Diagnostic data and historical records can be exported in CSV or Excel format for further analysis.
4. Intuitive Interface: The ergonomic interface allows for easy interaction without the need for from special training. All configuration steps are quick and easy for implementation.
5. Self-programming and self-addressing: Self-programming and self-addressing mechanisms allow for fast and Error-free device recognition, interrogation and programming.
6. Personalization: The panel can be customized according to the user's needs, including colors, background display, logo, and language.
7. Remote programming: Onemini can be programmed both on-site and remotely through the specialized online platform OneCloud. The data can be import and export via USB drive.
8. Monitoring via WinWatch32: The WinWatch32 surveillance system allows monitoring of the entire system.
9. Certifications: The device is certified according to UNI EN 54-2 and UNI EN 54-4 standards for fire detection and signaling systems.
10. Access levels: Onemini offers three levels of access depending on the role of the user (installer, safety manager, end user).

Application:

Onemini is suitable for a wide range of applications, including:

• Industrial plants, offices, shops and residential buildings: It is suitable for managing security systems in various types of buildings.
• Small and medium-sized structures: It is ideal for smaller installations where flexibility and ease of operation are required.
• Sophisticated anti-intrusive systems: It can be used to manage complex security systems that require a high degree of automation and control.
• Other Surveillance and Control Systems: It is also suitable for other applications where monitoring and management of various devices is required.

Advantages:

• Flexibility: The ability to customize makes it suitable for a variety of applications.
• Ease of Use: The intuitive interface and self-programming capabilities reduce the need for training and speed up installation.
• Reliability: Certifications and diagnostic capabilities ensure a high degree of reliability and security.

Onemini is a powerful security management tool that offers flexibility, ease of use and a high degree of reliability, making it suitable for a wide range of applications.

In accordance with EN54-2 and EN54-4 standards Download
