Integrated security system, video surveillance and Access control

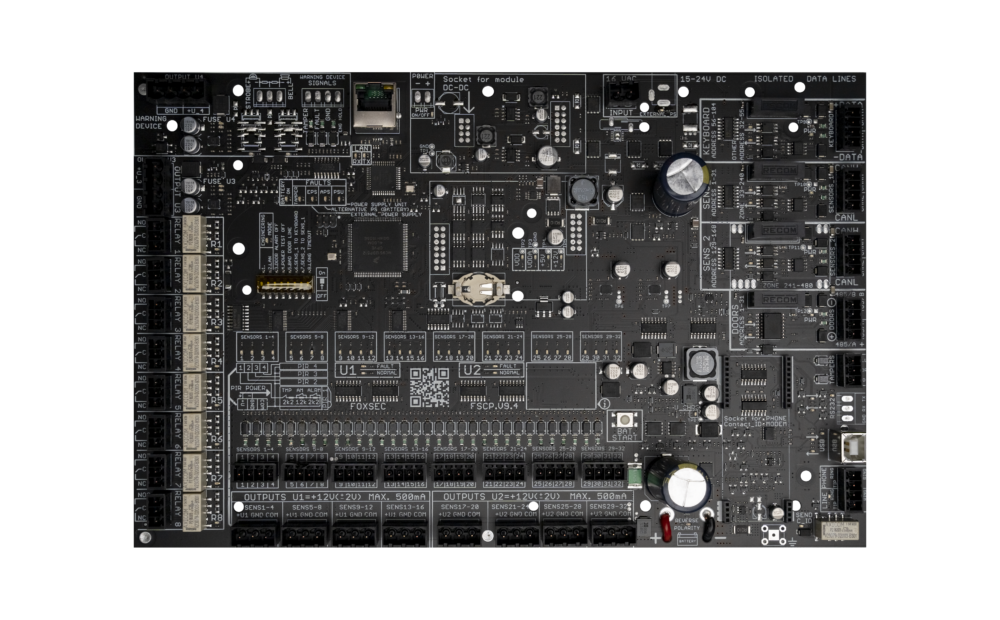

FS9002

CONTROL PANEL

 Технически параметри:

• 32 inputs for alarm zones, expandable to 480 zones, through expansion modules + up to 62 door access sensors, expandable to 310 door sensors;
• up to 240 areas;
• 8 programmable relay outputs, expandable to 1000 relay outputs with expansion modules;
• Up to 4 main panels or door controllers can be connected via Ethernet, adding up to 32 zones and 32 outputs from other panels or up to 310 doors;
• 310 doors with Ethernet-connected FS9131 door data line modules (up to 31 controllers for 2 doors per line) with independent user database memory and events and hardware-level integration;
• EEPROM memory up to 5760 users;
• Independent buffer for 100 alarms and 100 door events
  in real time;
• up to 48 keyboards (with optional built-in reader);
• 4 or 6-digit PIN or card+PIN for authorization;
• 5760 users with up to 38 personal zones and 60 security time zones;
• memory 24,000 alarm events;
• 48 pre-programmed holidays (areas remain guarded and doors locked);
• 80 graphs for various programs (arming, disarming, relay setting, etc.);
• 480 antimasking zones;
• 480 zones have adjustable EOL values;
• Outputs and inputs for warning devices;
• LED indication of zone status;
• BACnet protocol (optional);
• Real time clock;
• 3 enclosure tamper inputs
• 10/100 ethernet port
• USB port for configuration;
• 1 optically isolated keyboards and a line for expansion modules (with a length of up to 1.5 km);
• 2 optically isolated entrances for expanding zones (with a length of up to 2 km each);
• 1 optically isolated line for access door controllers (up to 31 controllers for 2 doors and up to 1.2 km long);
• Dedicated hardware level IP UDP protocol for sending commands to expansion modules and door controllers
• All data lines have ESD protection;
• Protection against battery reverse polarity;
• Battery capacity measurement;
• Power supply 3A with battery charge;
• Contact ID phone line modem (optional);
• IP Contact ID alarm signaling via Ethernet;
• 4 controlled outputs for power supply 12V;
• Additional power output 12V 24W for web server (optional);
• Grade 3 Compliant Enclosure (Optional)

FS9010

CONTROL PANEL

 Технически параметри:

• 16 zones (expandable to 240) / 240 areas;
• 4 relays + 4 transistor relays (expandable to 240) + 1 siren output;
• 2 x 26bit Wiegand inputs to control two doors (expandable to 12 doors);
• Optically isolated data lines (optional);
• Built-in Ethernet data communication;
• FRAM and EEPROM memory, data retention for ten years in case of power loss;
• Up to 2800 users;
• Memory 3500 access control memory events + 2500 alarm events;
• Battery charge control;
• Phone Contact ID or GSM modem (optional);
• Power supply unit 12VDC, 1.7A;
• Metal housing 300 x 220 x 75 mm

FS9501WH OLED

WHITE KEYBOARD

 Technical parameters:

• OLED keyboard 2 rows x 20 characters;
• Turning on and off areas, change of PIN codes, Show & Confirm alarms, temporary restriction of users, sensors or expansion modules, event memory of 100 keyboards;
• Fast and intuitive interface;​
• Built-in contactless reader (option);
• Silicone buttons with backlight;
• Supply voltage 12VDC;
• Operating temperature between 0 –+ 40ºC (no evaporation)​
• IP55,
• Dimensions 170 x 125 x 25mm

FS9501BL OLED

BLACK KEYBOARD

 Technical parameters:​

• OLED keyboard 2 rows x 20 characters;
• Arming and Disarming areas, changing PIN codes, displaying and confirming alarms, temporarily restricting users, sensors or expansion modules, event memory of 100 keypads;
• Fast and intuitive interface;​
• Built-in contactless reader (option);
• Silicone buttons with backlight;
• Supply voltage 12VDC;
• Operating temperature between 0 –+ 40ºC (no evaporation)​
• IP55,
• Dimensions 170 x 125 x 25mm

FS9216/2

16 ZONES EXPANDER MODULE 2 OUTPUTS

Technical parameters:

• 16 zone inputs;
• 2 programmable relay outputs (12V / 0.5A /NO/NC);
• Adjustable EOL (end of line resistance);
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 0.5A;
• Control battery charge.


FS9216/8

EXPANSION MODULE 16 ZONES 8 OUTPUTS

Technical parameters:

• 16 zone inputs;
• 8 programmable relay outputs (12V / 0.5A /NO/NC);
• Adjustable EOL (end of line resistance);
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 0.5A;
• Battery charge control.

FS9116/0

16 ZONES EXPANDER MODULE

Technical parameters:

• 16 zones with LED status;
• Connects directly to the CAN line of the main panel;
• A maximum of seven modules per panel;
• Freely programmable zone types / zone partitions / programmable EOL resistors;
• Live monitoring via FSConf or FoxSec monitoring and control software.

FS9316/2

EXPANSION MODULE 16 ZONES 2 OUTPUTS

Technical parameters:

• 16 zone inputs;
• 2 relay outputs;
• 2 optical ports (SC-duplex) (Option) up to 20 km distance;
• Output power 12V for sensors with short circuit protection;
• Input for temperature sensor (up to 10 m cable length);
• Sound signal for easy identification of the module;
• Metal box 290 x 280 x 80 mm;
• Battery status and malfunction indicators;
• Test for battery reserve capacity and polarity
  reversal protection with Indication;
• Power supply unit 12VDC, 0.5A
• EN-50131 Grade 3

FS9108/2 (8)

EXPANSION MODULE 8 ZONES 2 OR 8 OUTPUTS

Technical Parameters:

• 8 zone inputs;
• 2/8 programmable relay outputs (12V/0, 5A / NO/NC);
• Supply voltage 12VDC;
• Adjustable EOL (end of line resistance);
• ABS plastic body 155 x 230 x 55 mm

FS9316/8

EXPANSION MODULE 16 ZONES 8 OUTPUTS

Technical parameters:

• 16 zone inputs;
• 8 relay outputs;
• 2 optical ports (SC-duplex) (Option) up to 20 km distance;
• Output power 12V for sensors with short circuit protection;
• Input for temperature sensor (up to 10 m cable length);
• Sound signal for easy identification of the module;
• Metal box 290 x 280 x 80 mm;
• Battery status and malfunction indicators;
• Test for battery reserve capacity and polarity
  reversal protection with Indication;
• Power supply unit 12VDC, 0.5A
• EN-50131 Grade 3

FS9100/8

EXPANDER
MODULE WITH 8 RELAY OUTPUTS

Technical Parameters:

• 8 programmed relay outputs (12V/5A/NO/NC);
• Metal box size: 290 x 280 x 80 mm (optional plastic mounting box);
• LED indication of the status of the outputs;
• Power supply unit 12VDC, 2.5A;
• Recharging the battery;
• Up to 24 modules per panel FS9000/FS9002 / Up to 14 modules per panel FS9010;
• Live monitoring via FSConf software;

FS9100/8.8

EXPANDER
MODULE WITH 8 RELAY OUTPUTS

Technical Parameters:

• 8 relay (500 mA) outputs NC/NO;
• Metal box size: 290 x 280 x 80 mm (optional plastic mounting box);
• LED indication of the status of the outputs;
• Maximum 4 modules per FS9100/8 main output module;
• Real-time monitoring via FSConf software;
• 2 separate inputs for activating or deactivating all relays, regardless of the current state of the relays;
• Supply voltage 12VDC
• Board size 90 x 65 x 10 mm

FS7302

EXPANSION MODULE FOR ACCESS CONTROL 2 DOORS

Technical parameters:

• 2 doors (4 readers);
• Up to 1850 card users and 2000 events in controller memory;
• 2 programmable relay outputs;
• 4 Wiegand inputs;
• Anti-passback and more than 50 other special functions;
• Optical isolation;
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 2A/3A;
• Power supply for electromagnets 12VDC/24VDC;
• Control battery status;
• Card Access, Card+PIN, Permanently Locked, Permanently Unlocked, PIN Only Access

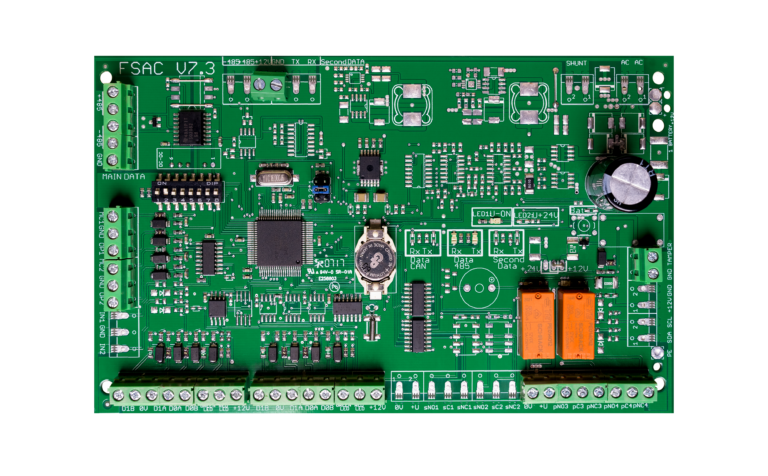

FS7302ECO

EXPANSION MODULE FOR ACCESS CONTROL 2 DOORS

Technical Parameters:

• 2 doors (4 readers);
• Up to 1850 card users and 2000 events in controller memory;
• 2 programmable relay outputs;
• 4 Wiegand inputs (4 x 26 bit Wiegand);
• Real Time Clock;
• 10 schedules for each door;
• Card Access, Card+PIN, Permanently Locked, Permanently Unlocked, PIN Only Access

FS6300IO/16

EXPANSION MODULE FOR ELEVATOR CONTROL 16 FLOORS

Technical Parameters:

• 16 floors;
• Up to 7,600 card users
• 2000 events in controller memory;
• 1 Wiegand input;
• Optical isolation;
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 2A/2A;
• Battery status control;

FS6300IO/8

EXPANSION MODULE FOR ELEVATOR CONTROL 8 FLOORS

Technical Parameters:

• 8 floors;
• Up to 1850 card users
• 2000 events in controller memory;
• 1 Wiegand input;
• Optical isolation;
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 2A/2A;
• Battery status control;;

FS8301

EXPANSION MODULE FOR ACCESS CONTROL 1 DOOR

Technical Parameters:

• 1 by (2 readers);
• Up to 7600 card users and 2000 events in controller memory контролера;
• 1 programmable relay output;
• 2 Wiegand input;
• Anti-passback and more than 50 other special functions;
• Optical isolation;
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 2A/3A;
• Power supply for electromagnets 12VDC/24VDC;
• Control battery status;
• Access with card, with card + PIN, permanently locked, permanently open, PIN access only

FS8302

EXPANSION MODULE FOR ACCESS CONTROL 2 DOORS

Technical Parameters:

• 2 doors (4 readers);
• Up to 7600 card users and 2000 events in controller memory контролера;
• 2 programmable relay outputs;
• 4 Wiegand inputs;
• Anti-passback and more than 50 other special functions;
• Optical isolation;
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 2A/3A;
• Power supply for electromagnets 12VDC/24VDC;
• Control battery status;
• Access with card, with card + PIN, permanently locked, permanently open, PIN access only

FS7301

EXPANSION MODULE FOR ACCESS CONTROL 1 DOOR

Technical parameters:

• 1 by (2 readers);
• Up to 1850 card users and 2000 events in controller memory;
• 1 programmable relay output;
• 2 Wiegand input;
• Anti-passback and more than 50 other special functions;
• Optical isolation;
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 2A/3A;
• Power supply for electromagnets 12VDC/24VDC;
• Control battery status;
• Access with card, with card + PIN, permanently locked, permanently open, PIN access only

FS1001

ACCESS CONTROL EXPANSION MODULE

Technical parameters:

• 2 x 26 bit Wiegand inputs;
• Two relay outputs;
• One door sensor input;
• One door button input;
• Memory of four SOS contactless cards;
• Supply voltage 12VDC;
• ABS plastic body 155 x 230 x 55 mm

FS7311

EXPANSION MODULE FOR ACCESS CONTROL 1 TURNSTILE

Technical Parameters:

• Entry/Exit
• Up to 1850 card users
• 2000 events in controller memory;
• 2 programmable relay outputs;
• 2 Wiegand input;
• Anti-passback ;
• Optical isolation;
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 2A/2A;
• Battery status control;;

FS8311

EXPANSION MODULE FOR ACCESS CONTROL 1 TURNSTILE

Technical Parameters:

• Entry/Exit
• Up to 7,600 card users
• 2000 events in controller memory;
• 2 programmable relay outputs;
• 2 Wiegand input;
• Anti-passback;
• Optical isolation;
• Metal housing 290 x 280 x 80 mm;
• Power supply unit 12VDC, 2A/2A;
• Battery status control;

FS9131

ETHERNET
COMMUNICATION MODULE

Technical Parameters:

• Up to 31 door controllers (compatible with FoxSec Monitoring and FoxSec Web software);
• Surge protection;
• Real-time monitoring of access-controlled doors;
• Real-time access rights;
• Configurations and setup with FSConf

FS9140 CONTACT ID

CONTACT ID COMMUNICATOR (PHONE LINE)

Technical Parameters:

• Up to 240 Contact ID accounts;
• Up to 98 areas;
• Up to 999 users

FS9135

ISOLATOR / BUS REPEATER

Technical Parameters:

• Makes the data line twice as long;
• PCB 90 х 55 х 10mm

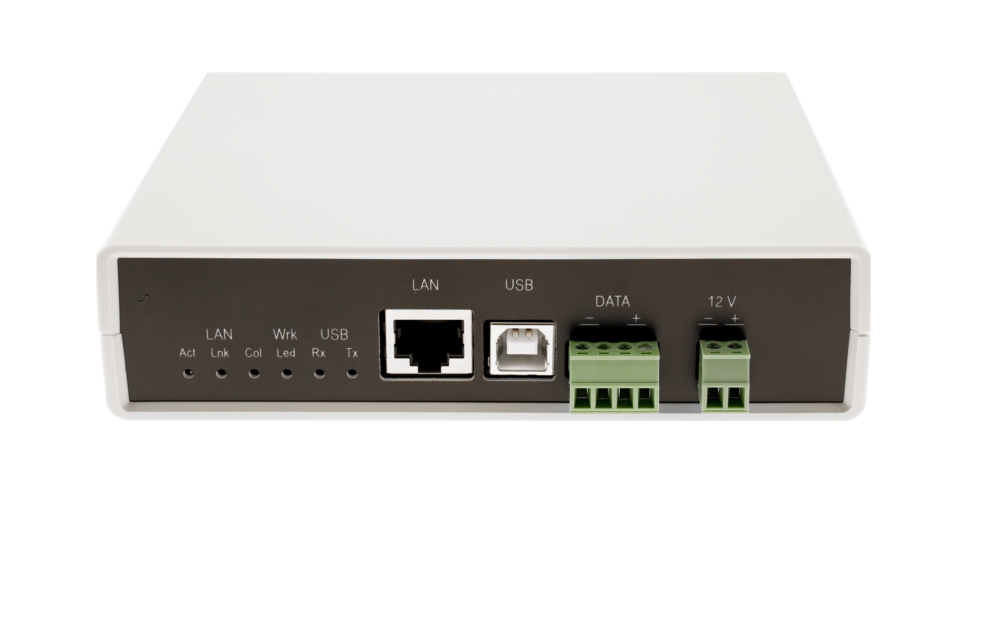

ADP4 LAN

ETHERNET COMMUNICATION MODULE

Technical Parameters:

• Each ADP4 data line can manage up to 31 access controllers or 1 time attendance registration
• Surge protection;
• Configurations and setup with ADP4
