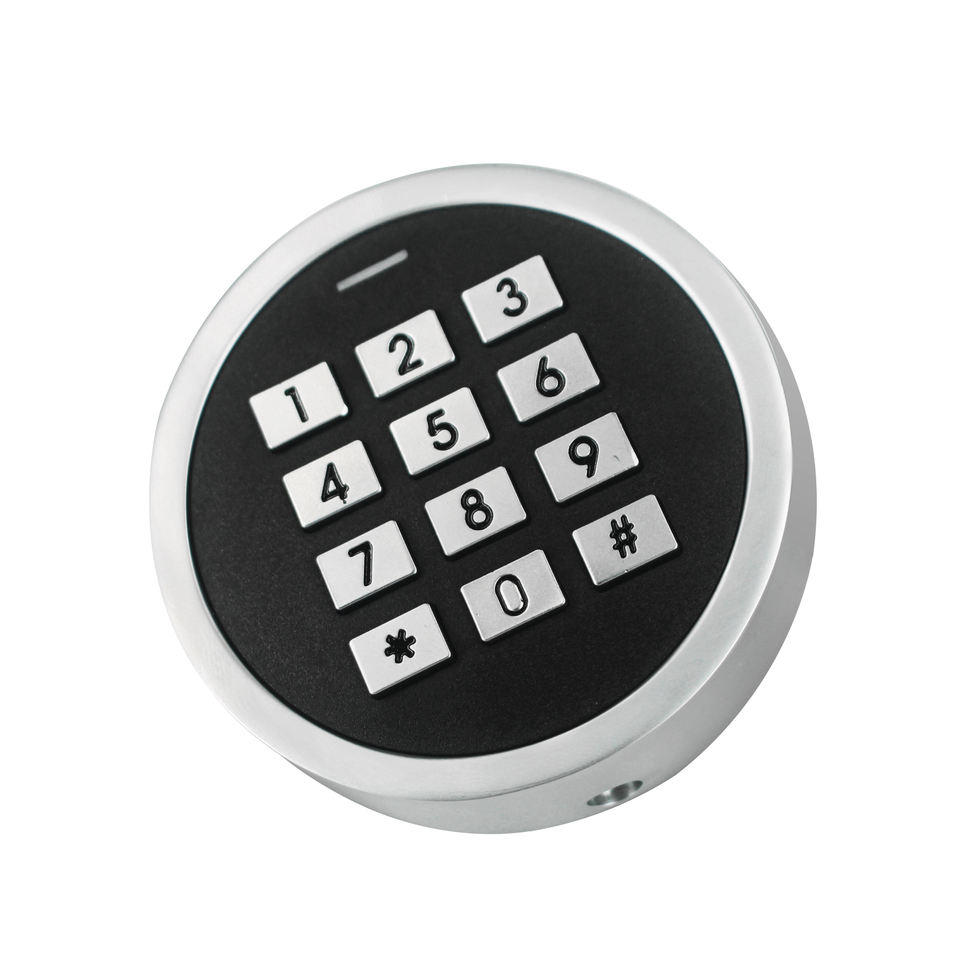

SMILE K7 BT Mini keyboard with contactless reader for outdoor installation
SMILE K7 BT, is in a metal case and has an IP66 degree of protection. This ensures that it will be able to work in harsh weather conditions. It is protected from water, dust and other external damage. SMILE K7 BT can be installed by itself without the need to have another controller. It can control any type of electromagnetic lock, exit button.
Advantages:
- Stand-alone controller with metal keyboard and contactless card reader;
- Waterproof metal housing meets IP66;
- Suitable for installation in bad weather conditions;
- Multiple ways of access: by card, code, mobile app;
- Mobile app for iOS and Android ;
- Ability to add/delete users from the application;
- Ability to open through the application;
- View all events/openings;
- Supports Wifi hub guaranteeing access from anywhere in the world;
- Compatible with Smart Life /Tuya;
- Suitable for properties rented on a hotel basis.
Технически данни / Technical data
Захранване / Power supply :
|
12~18V DC
|
Консумация в режим на готовност / Standby consumption:
|
≤ 60mA
|
Изходи: / Outputs: |
Реле, бутон "изход", Wiegand 26bits / Relay output, exit button, Wiegand 26bits |
Вход: / Input |
Wiegand 26~34bits |
| Релета / Relays: | 1 (NO, NC, Common) |
|
Регулируемо изходно време на релето: / Adjustable Relay Output Time: |
0~99 секунди (5 секунди по подразбиране) / 0~99 Seconds (5 seconds default)
|
|
максимален ток на бравата: / Lock Output Load: | 1А |
Комуникация / Communication :
|
Bluetooth (WiFi чрез Wifi хъб) / Bluetooth (WiFi via Wifi bridge) |
Потребители: / Users: |
Общо потребители / Common users - 998 |
Четец формат: / Reader format |
125Khz / 13.56MHz |
| IP Степен на защита: / IP grade: | IP66 |
|
Размери / Dimensions:
|
Ф 73 x 23 mm |
|
Тегло / Weight:
|
0,285 кг/ kg
|
|
Работна температура / Operating temperature:
|
-40~+60C°
|
