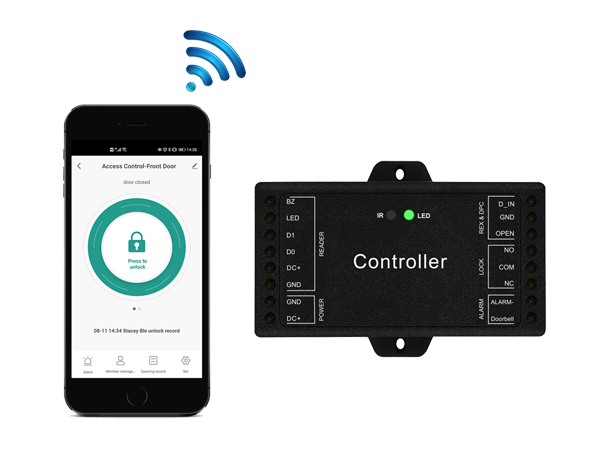

SMILE DC is a miniature WIFI access control module.
Through the Tuya/Smart Life applications, users can open the door from anywhere in the world where they have access to the Internet. The controller has one output and can be used as a traditional independent access control controller. It is compatible with all 26-37-bit readers/keyboards supporting Wiegand format. Supports a maximum of 1000 users (500 in the app). Through the application, you can issue temporary access codes, restrict access to users in a certain time interval, and learn information about opening the door.
Технически данни / Technical data
Захранване / Power supply :
|
12V DC |
Консумация в режим на готовност / Standby consumption:
|
≤ 100mA
|
Изходи: / Outputs: |
Реле, бутон "изход", аларма, магнитен контакт / Relay output, exit button, alarm, door contact,
|
Вход: / Input |
Wiegand 26~44, 56, 58bits
|
| Релета / Relays: | 1 (NO, NC, Common) |
|
Регулируемо изходно време на релето: / Adjustable Relay Output Time: |
0~99 секунди (5 секунди по подразбиране) / 0~99 Seconds (5 seconds default)
|
|
максимален ток на бравата: / Lock Output Load: | 2А |
Комуникация / Communication :
|
WiFi /2.4 GHz |
Потребители: / Users: |
Общо потребители / Common users - 1000 |
Съвместимост / Compatibility :
|
- |
|
Размери / Dimensions:
|
48 x 48 x 20 mm |
|
Тегло / Weight:
|
0,100 кг/ kg
|
|
Работна температура / Operating temperature:
|
0~+40C°
|
