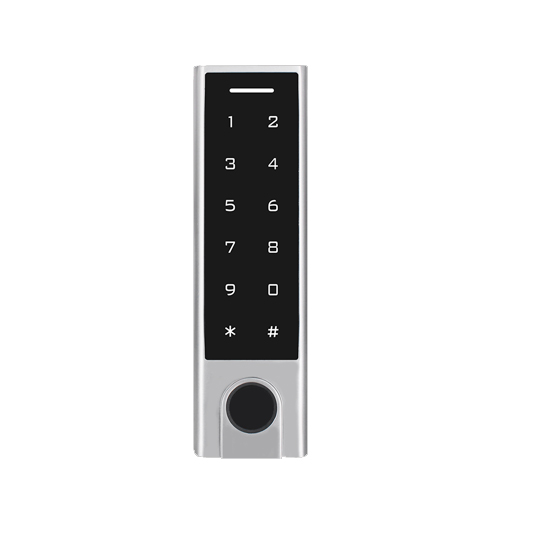

SMILE BTFC, is an innovative biometric fingerprint reader for access control. The use of a modern fingerprint algorithm is a guarantee of reliability, precision and excellent match detection speed.
The controller is in a metal case and has an IP66 degree of protection. This ensures that it will be able to work in harsh weather conditions. It is protected from water, dust and other external damage. SMILE BTFC can be installed on its own without the need to have another controller. It can control any type of electromagnetic lock, exit button. A magnetic contact can also be connected to it.
Advantages:
- Stand-alone controller with capacitive fingerprint sensor, touch keyboard and contactless reader;
- Waterproof metal housing meets IP66;
- Suitable for installation in bad weather conditions;
- Multiple access methods: with fingerprint, card, code;
- Mobile app for iOS and Android;
- Ability to add/delete users from the application;
- Ability to open through the application;
- View all events/openings;
- Supports Wifi hub guaranteeing access from anywhere in the world;
- Compatible with Smart Life /Tuya;
- Suitable for properties rented on a hotel basis.
Технически данни / Technical data
Захранване / Power supply :
|
12~18V DC
|
Консумация в режим на готовност / Standby consumption:
|
≤ 60mA
|
Изходи: / Outputs: |
Реле, бутон "изход", аларма, магнитен контакт / Relay output, exit button, alarm, door contact
|
Вход: / Input |
Wiegand 26~44, 56, 58bits |
| Релета / Relays: | 1 (NO, NC, Common) |
|
Регулируемо изходно време на релето: / Adjustable Relay Output Time: |
0~99 секунди (5 секунди по подразбиране) / 0~99 Seconds (5 seconds default)
|
|
максимален ток на бравата: / Lock Output Load: | 1А |
Комуникация / Communication :
|
Bluetooth (WiFi чрез Wifi хъб) / Bluetooth (WiFi via Wifi bridge) |
Потребители: / Users: |
Общо потребители / Common users - 998 (100 пръстови отпечатъка +898 карти) / (100 fingerprints +898 cards) |
Четец формат: / Reader format |
125Khz, 13,6Mhz |
| IP Степен на защита: / IP grade: | IP66 |
|
Размери / Dimensions:
|
L148 x W43.5 x H22 (mm)
|
|
Тегло / Weight:
|
0,450 кг/ kg
|
|
Работна температура / Operating temperature:
|
-30~+60C°
|
