Access control for entrance doors where it is not possible to lay cables. 4C WS2A is the solution! A wireless kit that includes everything you need to provide reliable access control at a single door. All modules connect wirelessly and run on batteries. No need for cables anymore! Thanks to the high degree of protection - IP65, it is suitable for both indoor and outdoor installation.
Advantages:
- Easy to install and set up;
- Extremely low current consumption guaranteeing about 10,000 openings;
- 433MHz Rolling Code technology;
- Ability to add wireless remote controls;
- Vandal-proof metal wireless keyboard (IP65);
- 100 users per PIN/card;
- 4~6 digit PIN, 13.6MHz card;
- Communication distance: 15~20m maximum;
- Open the lock with a keypad, wireless exit button, card or remote control;
- Battery life: more than 12 months.

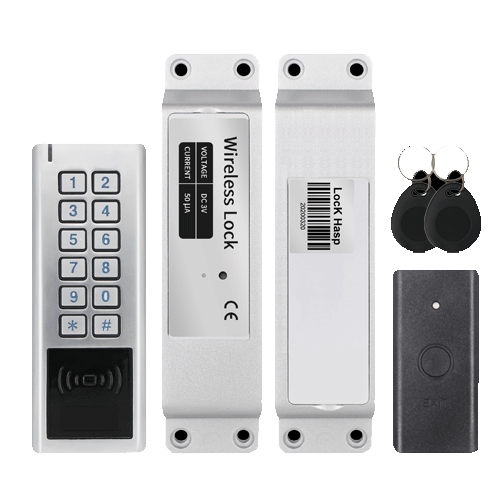

The set contains:
- Wireless access control reader with keypad *1
- Wireless magnetic door lock * 1
- Exit button
1
- Contactless chip (tag) * 5
- Batteries not included
Технически данни / Technical data
Захранване / Power supply :
| Клавиатура / Keypad - 3* AAA батерии / batteries Електромагнит / Electromagnetic lock 2* AA батерии / batteries Бутон "Изход" / "Exit button 1* 2032 литиева батерия / Lithium battery |
Консумация на ток / Current consumption:
| Клавиатура / Keypad ≤ 50mA Електромагнит / Electromagnetic lock ≤ 42mA Бутон "Изход" / "Exit button ≤ 3mA |
|
Регулируемо изходно време на релето: / Adjustable Relay Output Time: |
3 секунди / 3 Seconds
|
Комуникация / Communication :
|
433Mhz |
Потребители: / Users: |
100 |
Четец формат: / Reader format |
13.6MHz |
| IP Степен на защита: / IP grade: | IP66 |
|
Размери / Dimensions:
|
Клавиатура / Keypad - 148 x 56 x 19 mm Електромагнит / Electromagnetic lock - 169 x 40 x 25 mm Бутон "Изход" / "Exit button - 83 x 40x x 16 mm |
|
Тегло / Weight:
|
0,800 кг/ kg
|
|
Работна температура / Operating temperature:
|
-20~+60C°
|
