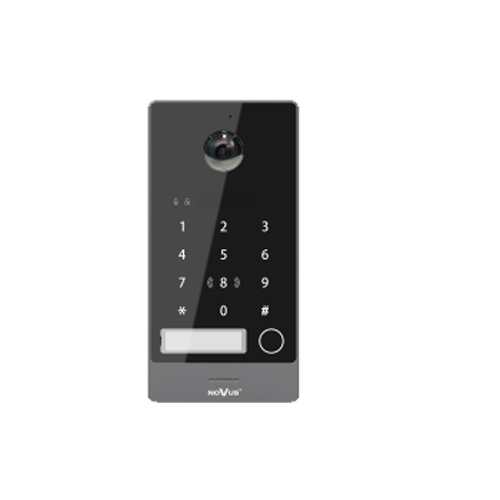

The NVE-2W-EPV101KP video intercom entry panel is an elegant device designed to control access to your property. It allows you to easily communicate with every visitor using the bell button and the built-in color camera. Infrared lighting (IR) allows trouble-free use of the panel at night as well. The panel has a built-in power supply for the electric door actuation and a relay for the electromagnetic lock, so no additional accessories are needed to operate both the door and the door. The built-in 13.56 MHz Mifare contactless card reader, the ability to connect a door sensor and an exit button allow you to create a simple access control that facilitates and automates the daily use of the system. The Wiegand interface allows you to connect a contactless card reader to the entry panel, providing two-way control using the card. The panel supports RTSP protocol which allows streaming to Novus CCTV recorders. Possible configuration of image parameters, settings and network protocols from the web application client level.
Advantages:
- Quick and easy installation - no special knowledge required;
- Two-wire wiring;
- Access the camera anytime from anywhere in the world using Wi-Fi, 3G, 4G/LTE on your phone or tablet;
- Excellent visibility at night. Minimum illumination 0 Lux;
- Motion detector. A motion sensor alerts you when you're not home that someone is at your door;
- Two-way audio connection.The NVE-2W-EPV101KP has a built-in microphone and speaker;
- Manual recording of a video clip or photo;
- High resolution camera and 125 ° wide angle lens;
- Share NVE-2W-EPV101KP with your family members. Manage your smart home together;
- Compatible with Tuya and Smart Life;
- A free application with many options for both automation and home security.
The set includes:
- Video intercom with keypad and contactless card reader;
- Mounting plate;
- Rain cover;
- Contactless tags 3 pcs.
- Fasteners;
- Connecting cable 14pin;
- User description
Note: For a complete set of the system, it is necessary to order and: NVE-2W-PS136 и NVE-MV107WIFI-B
NOVUS VIDEO INTERCOM SYSTEMS
Технически данни / Technical data
| Сензор: / Sensor: | CMOS HD 2 MPx |
| Резолюция: / Resolution: | 2 мега пиксела /1080P / 2 mega pixels /1080P |
| Минимална осветеност: / Minimum illumination: | 0Lux (IR on) |
| Превключване в режим ден/нощ: / Switch to day/night mode: | Автоматично / automatically |
| Компресия на записа: / Recording compression: |
H.264 кодиране, двоен поток,
1920*1080/30fps 640*360/30fps / H.264 encoding, dual stream, 1920*1080/30fps 640*360/30fps |
| Обектив: / Lens: | 2,8 mm/ 125 ° |
| Аудио: / Audio: | Двупосочна аудио връзка / Two-way audio connection |
| Детектор на движение: / Motion detection: | Незабавни съобщения в приложението / Instant messaging in the app |
|
Разпознаване на човешко тяло / Human-body Detection
| не поддържа / not support |
| ИЧ дистанция: / IR distance: | 30 m |
| Брой абонати / Number of subscribers : | 1 |
| Захранване: / Power supply: | 18 - 36 VDC |
| Интерфейс: / Interface: |
Изход за ел.брава - NO изход 12 VDC, макс. 700 mA; изход за гаражна врата- NO реле (4 A / 30 V DC/AC); Wegand 26/34 bit/ Lock output-
NO output 12 VDC, max. 700 mA;
Gate output-
NO Relay (4 A / 30 V DC/AC); Wegand 26/34 bit |
| Цифрова клавиатура/Numeric keyboard Connectivity: | да |
| Максимален брой карти /Number of cards supported : | 100 |
| Размери: / Dimensions: |
162 x 82 x 29 mm
|
| Степен на защита: / IP rating: | IP67, IK07 |
| Тегло: / Weight: | 0.375 кg |
| Работна температура: / Operating temperature: | -40~+60C° |
